H3AAH-1606M

Active

Assmann WSW Components

IDC CBL - HHSC16H/AE16M/HHSC16H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC16H/AE16M/HHSC16H

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Color	Cable Termination	Connector Type	Shielding	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Rows	Length	Length	Length
Assmann WSW Components H3AAH-1618M	457.2 mm	1.5 ft	0.1 in	2.54 mm	Multiple Ribbon	IDC	Socket to Socket	Unshielded	16	15 µin	0.38 µm	0.05 "	1.27 mm	Gold	2
Assmann WSW Components H3AAH-1636M	914.4 mm	3 ft	0.1 in	2.54 mm	Multiple Ribbon	IDC	Socket to Socket	Unshielded	16	15 µin	0.38 µm	0.05 "	1.27 mm	Gold	2
Assmann WSW Components H3AAH-1606M			0.1 in	2.54 mm	Multiple Ribbon	IDC	Socket to Socket	Unshielded	16	15 µin	0.38 µm	0.05 "	1.27 mm	Gold	2	152.4 mm	6 "	0.5 '
Assmann WSW Components H3AAH-1618G	457.2 mm	1.5 ft	0.1 in	2.54 mm		IDC	Socket to Socket	Unshielded	16	15 µin	0.38 µm	0.05 "	1.27 mm	Gold	2
Assmann WSW Components H3AAH-1606G			0.1 in	2.54 mm		IDC	Socket to Socket	Unshielded	16	15 µin	0.38 µm	0.05 "	1.27 mm	Gold	2	152.4 mm	6 "	0.5 '
Assmann WSW Components H3AAH-1636G	914.4 mm	3 ft	0.1 in	2.54 mm		IDC	Socket to Socket	Unshielded	16	15 µin	0.38 µm	0.05 "	1.27 mm	Gold	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

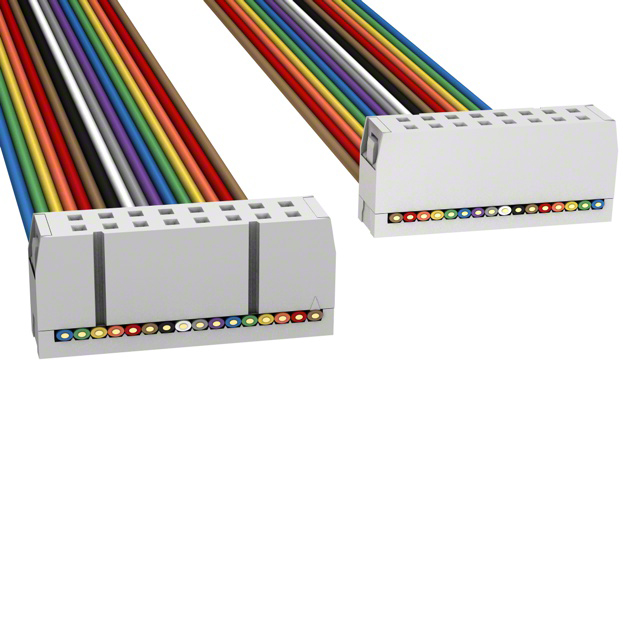

16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
