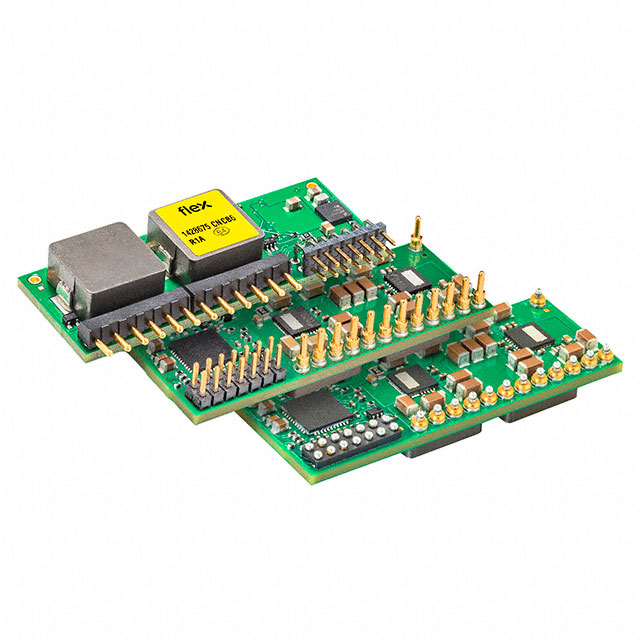

BMR4651010/001

Active

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 162W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 162W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4651010/001	BMR465 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	-	Active High, Enable
Current - Output (Max) [Max]	90 A	90 A
Efficiency	94.3 %	94.3 %
Features	PMBus™, Adjustable Output, Remote Sense	PMBus™, Adjustable Output, Remote Sense, Remote On/Off
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	26-SMD Module	26-SMD Module, 26-DIP Module, 26-SIP Module
Power (Watts)	162 W	162 W
Size / Dimension	-	19.1 mm
Size / Dimension	-	9.5 mm
Size / Dimension	-	0.75 in
Size / Dimension	-	0.37 "
Size / Dimension	-	50.8 mm
Size / Dimension	-	2 in
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	7.5 V	7.5 V
Voltage - Output 1 [Max]	1.8 V	1.8 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

DC DC CONVERTER 0.6-1.8V 162W

Part	Package / Case	Power (Watts)	Efficiency	Number of Outputs	Approval Agency	Standard Number	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Applications	Mounting Type	Type	Voltage - Input (Min) [Min]	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Control Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Flex Power Modules BMR4651010/001	26-SMD Module	162 W	94.3 %	1	CB, CSA, IEC, TUV, UL	62368-1	14 V	90 A	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module, Digital	7.5 V	Adjustable Output, PMBus™, Remote Sense	1.8 V	0.6 V	-40 °C	150 °C
Flex Power Modules BMR4650010/001	26-DIP Module	162 W	94.3 %	1	CB, CSA, IEC, TUV, UL	62368-1	14 V	90 A	ITE (Commercial)	Through Hole	Non-Isolated PoL Module, Digital	7.5 V	Adjustable Output, PMBus™, Remote Sense	1.8 V	0.6 V	-40 °C	150 °C
Flex Power Modules BMR4652010/001	26-SIP Module	162 W	94.3 %	1	CB, CSA, IEC, TUV, UL	62368-1	14 V	90 A	ITE (Commercial)	Through Hole	Non-Isolated PoL Module, Digital	7.5 V	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	1.8 V	0.6 V	-40 °C	150 °C	Active High, Enable	19.1 mm	9.5 mm	0.75 in	0.37 "	50.8 mm	2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 90A 7.5V - 14V Input
