17-10024

Active

Amphenol CONEC

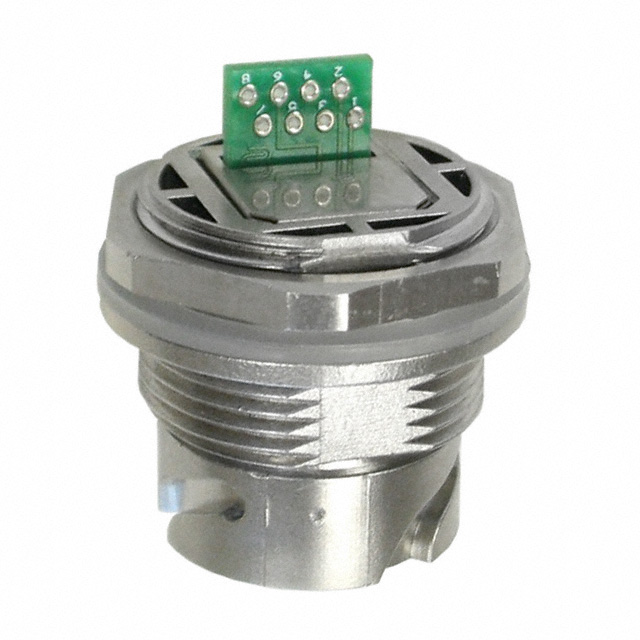

CONN MOD JACK 8P8C SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sealed Industrial Ethernet Circular IP67 RJ45

17-10024

Active

Amphenol CONEC

CONN MOD JACK 8P8C SHIELDED

Deep-Dive with AI

DocumentsDatasheet Sealed Industrial Ethernet Circular IP67 RJ45

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-10024

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Cover, Circular Bayonet Coupling
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Shielded
Tab Direction	User Selectable
Termination	PC Board, Solder

17-1002 Series

Part	Style	Features	Number of Positions/Contacts	Color	Shielding	Mounting Type	Cable Type	Connector Type	Number of Rows	Termination	Ingress Protection	Contact Finish Thickness	Contact Finish Thickness	Contact Material	LED Color	Tab Direction	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ratings	Number of Ports	Contact Finish	Length [x]	Length [x]	Convert To (Adapter End)	Convert From (Adapter End)	Type	Shell Material, Finish	Mounting Feature
Amphenol CONEC 17-10027	Cat5e Industrial Environments - IP67	Circular Bayonet Coupling Molded Plugs	8p8c (RJ45 Ethernet)	Black	Shielded	Free Hanging (In-Line)	Round Cable	Plug to Plug
Amphenol CONEC 17-10021		Circular Bayonet Coupling Cover	8p8c (RJ45 Ethernet)		Shielded	Bulkhead Panel Mount		Jack	1	Color Coded Block IDC	IP67 - Dust Tight Waterproof	50 µin	1.27 µm	Phosphor Bronze	Does Not Contain LED	User Selectable	Straight	85 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Cat5e	1	Gold
Amphenol CONEC 17-10024		Circular Bayonet Coupling Cover	8p8c (RJ45 Ethernet)		Shielded	Bulkhead Panel Mount		Jack	1	PC Board Solder	IP67 - Dust Tight Waterproof	50 µin	1.27 µm	Phosphor Bronze	Does Not Contain LED	User Selectable	Straight	85 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Cat5e	1	Gold
Amphenol CONEC 17-10026	Cat5e Industrial Environments - IP67	Circular Bayonet Coupling Molded Plugs	8p8c (RJ45 Ethernet)	Black	Shielded	Free Hanging (In-Line)	Round Cable	Plug to Plug																4 m	13.12 ft
Amphenol CONEC 17-10020		Cap (Cover) Circular Threaded Coupling Industrial Environments			Unshielded	Bulkhead Panel Mount					IP67 - Dust Tight Waterproof	50 µin	1.27 µm	Phosphor Bronze				85 °C	-40 °C	Polybutylene Terephthalate (PBT) Glass Filled	Cat5e		Gold			8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Coupler	Polyester	Front Side Nut Rear Side Nut
Amphenol CONEC 17-10025	Cat5e Industrial Environments - IP67	Circular Bayonet Coupling Molded Plugs	8p8c (RJ45 Ethernet)	Black	Shielded	Free Hanging (In-Line)	Round Cable	Plug to Plug																2 m	6.56 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 22.27

Description

General part information

17-1002 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e

Documents

Technical documentation and resources

Datasheet

Sealed Industrial Ethernet Circular IP67 RJ45

Datasheet
