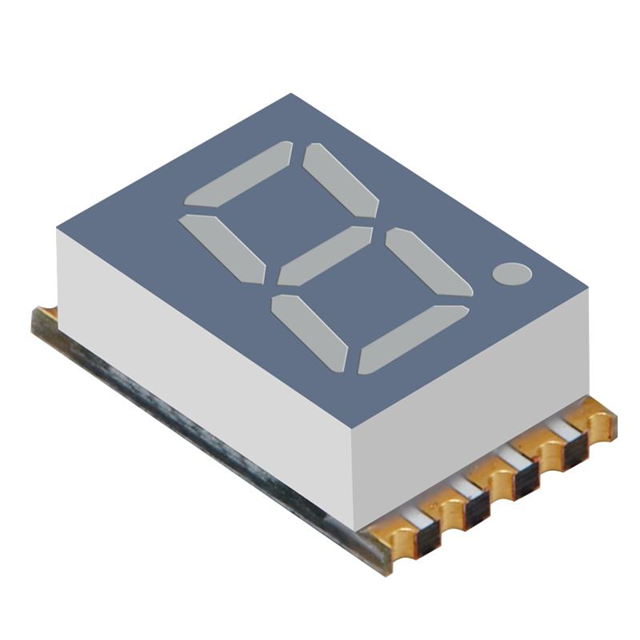

XZFVG07C

Active

SunLED

DISPLAY 7SEG 0.3" SGL GRN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFVG07C

Active

SunLED

DISPLAY 7SEG 0.3" SGL GRN 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFVG07C

Color	Green
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	3 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Voltage - Forward (Vf) (Typ)	2 V

XZFVG07 Series

Part	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Test	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Number of Characters	Color	Common Pin	Display Type	Number of Characters [custom]
SunLED XZFVG07A2	75 mw	0.3 in	7.62 mm	20-SMD No Lead	3.75 mm	0.472 in	0.583 inches	14.8 mm	12 mm	0.148 in	10 mA	2 V	3 mcd	2	Green	Common Anode	7-Segment
SunLED XZFVG07C	75 mw	0.3 in	7.62 mm	10-SMD No Lead							10 mA	2 V	3 mcd		Green	Common Cathode	7-Segment	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	550	$ 1.56
		1100	$ 1.34
		2750	$ 1.27
		5500	$ 1.24

Description

General part information

XZFVG07 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2V 10mA 0.472" H x 0.287" W x 0.148" D (12.00mm x 7.30mm x 3.75mm) 10-SMD, No Lead

Documents

Technical documentation and resources
