SW5 CL005

Active

ALPHA WIRE

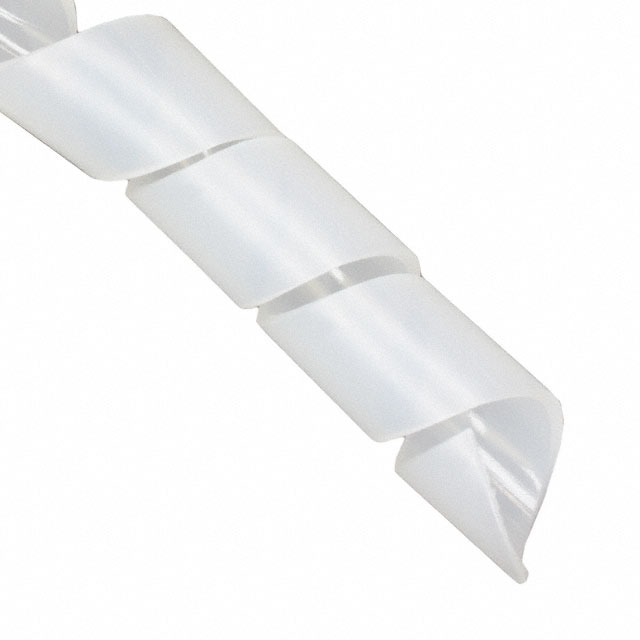

SPIRAL WRAP 0.62" X 100' CLEAR

Search across all available documentation for this part.

Active

ALPHA WIRE

SPIRAL WRAP 0.62" X 100' CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	SW5 CL005

Abrasion Protection	Abrasion Resistant
Color	Clear
Diameter - Inside, Non-Expanded [diameter]	15.75 mm
Diameter - Inside, Non-Expanded [diameter]	0.62 in
Diameter - Outside, Non-Expanded [diameter]	19.05 mm
Diameter - Outside, Non-Expanded [diameter]	0.75 in
Features	Solvent Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE), Halogen Free
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.65 mm
Wall Thickness	0.065 in

SPIRAL WRAP 0.62" X 100' CLEAR

Part	Features	Wall Thickness	Wall Thickness	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Abrasion Protection	Type Attributes	Type	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]
ALPHA WIRE SW5 CL005	Solvent Resistant	1.65 mm	0.065 in	Clear	19.05 mm	0.75 in	Polyethylene (PE), Halogen Free	100 ft	30.48 m	-60 °C	88 °C	Abrasion Resistant	Harness	Spiral Wrap	15.75 mm	0.62 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 0.750" (19.05mm) X 100' (30.48m) Clear
