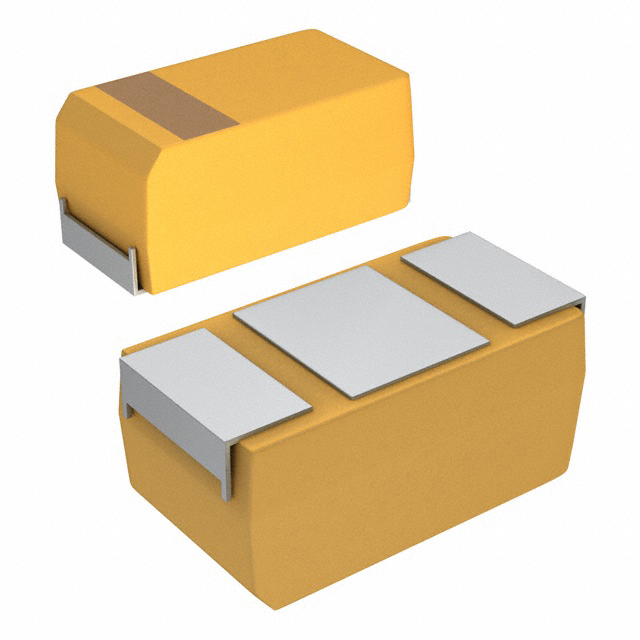

CWR09JC226KB
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 20V, 10% +TOL, 10% -TOL, 22UF, SURFACE MOUNT, 2915, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CWR09JC226KB
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 20V, 10% +TOL, 10% -TOL, 22UF, SURFACE MOUNT, 2915, CHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR09JC226KB |
|---|---|
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 900 mOhm |
| Failure Rate | B (0.1%) |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) [Max] | 3.17 mm |
| Height - Seated (Max) [Max] | 0.125 " |
| Manufacturer Size Code | H |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2915 |
| Package / Case | 7338 Metric |
| Qualification | MIL-PRF-55365/4 |
| Size / Dimension [x] | 7.24 mm |
| Size / Dimension [x] | 0.285 in |
| Size / Dimension [y] | 0.15 " |
| Size / Dimension [y] | 3.81 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.77 | |
| Digi-Reel® | 1 | $ 12.77 | ||
| Tape & Reel (TR) | 500 | $ 8.26 | ||
Description
General part information
CWR09JC Series
22 µF Molded Tantalum Capacitors 20 V 2915 (7338 Metric) 900mOhm
