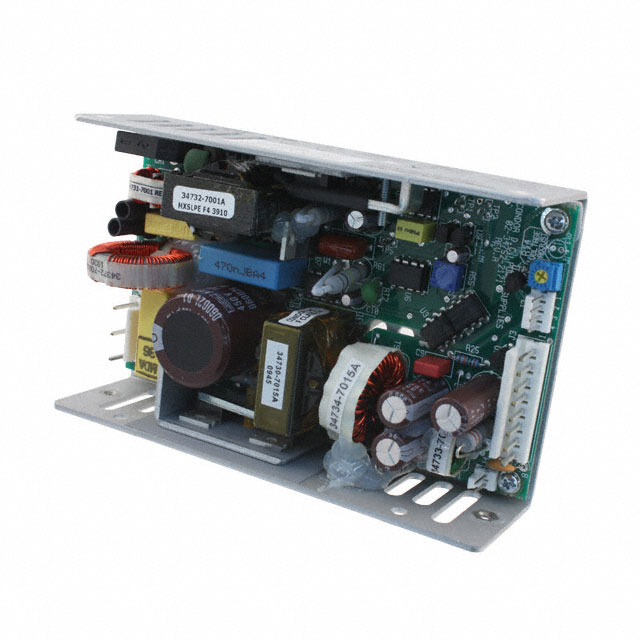

GPFM115-24CG

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 80W

Search across all available documentation for this part.

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 80W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 234.82

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GPFM115-24CG	GPFM115 Series

Applications	Medical	Medical
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Current - Output 1	4.8 A	1.7 - 12 A
Efficiency	81 %	81 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	115 W, 80 W	80 - 115 W
Size / Dimension [x]	133.4 mm	133.4 mm
Size / Dimension [x]	5.25 "	5.25 "
Size / Dimension [y]	83.8 mm	83.8 mm
Size / Dimension [y]	3.3 in	3.3 in
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.5 "
Type	Open Frame	Open Frame
Voltage - Output 1	24 V	5.1 - 48 V

AC/DC CONVERTER 5.1V 80W

Part	Applications	Number of Outputs	Efficiency	Features	Current - Output 1	Approval Agency	Mounting Type	Voltage - Output 1	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)
SL POWER / Advanced Energy GPFM115-5G	Medical	1	81 %	Adjustable Output, PFC, Remote Sense, Universal Input	12 A	CE, cURus, TUV	Chassis Mount	5.1 V	Open Frame	133.4 mm	5.25 "	83.8 mm	3.3 in	38.1 mm	1.5 "	80 W, 115 W
SL POWER / Advanced Energy GPFM115-28G	Medical	1	81 %	Adjustable Output, PFC, Remote Sense, Universal Input	2.9 A	CE, cURus, TUV	Chassis Mount	28 V	Open Frame	133.4 mm	5.25 "	83.8 mm	3.3 in	38.1 mm	1.5 "	80 W, 115 W
SL POWER / Advanced Energy GPFM115-48G	Medical	1	81 %	Adjustable Output, PFC, Remote Sense, Universal Input	1.7 A	CE, cURus, TUV	Chassis Mount	48 V	Open Frame	133.4 mm	5.25 "	83.8 mm	3.3 in	38.1 mm	1.5 "	80 W, 115 W
SL POWER / Advanced Energy GPFM115-24CG	Medical	1	81 %	Adjustable Output, PFC, Remote Sense, Universal Input	4.8 A	CE, cURus, TUV	Chassis Mount	24 V	Open Frame	133.4 mm	5.25 "	83.8 mm	3.3 in	38.1 mm	1.5 "	80 W, 115 W
SL POWER / Advanced Energy GPFM115-24G	Medical	1	81 %	Adjustable Output, PFC, Remote Sense, Universal Input	3.3 A	CE, cURus, TUV	Chassis Mount	24 V	Open Frame	133.4 mm	5.25 "	83.8 mm	3.3 in	38.1 mm	1.5 "	80 W, 115 W
