2-917808-3
ActiveTE Connectivity AMP Connectors

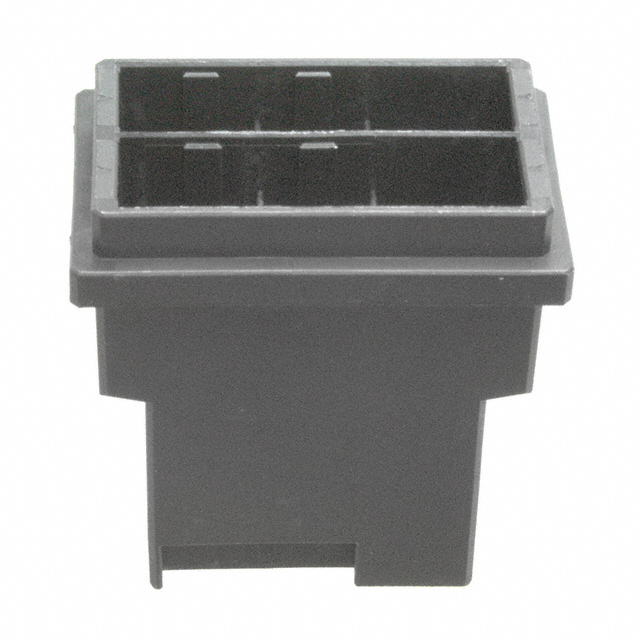

CONN PLUG HSG 6POS 10.16MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-917808-3
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 6POS 10.16MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-917808-3 | 917808 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Features | Polarizing Key | Polarizing Key |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 4 - 6 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 10.16 mm | 10.16 mm |
| Pitch [x] | 0.4 in | 0.4 in |
| Row Spacing | 0.4 in | 0.4 in |
| Row Spacing | 10.16 mm | 10.16 mm |
917808 Series
CONN PLUG HSG 6POS 10.16MM
| Part | Contact Termination | Pitch [x] | Pitch [x] | Insulation Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Type | Number of Rows | Row Spacing | Row Spacing | Color | Number of Positions | Note | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-917808-3 | Crimp | 10.16 mm | 0.4 in | Glass Filled, Polyester, Thermoplastic | Male Pin | 105 ░C | -55 °C | Plug | Free Hanging (In-Line) | 2 | 0.4 in | 10.16 mm | Black | 6 | Contacts Not Included | Polarizing Key |
TE Connectivity AMP Connectors 2-917808-2 | Crimp | 10.16 mm | 0.4 in | Glass Filled, Polyester, Thermoplastic | Male Pin | 105 ░C | -55 °C | Plug | Free Hanging (In-Line) | 2 | 0.4 in | 10.16 mm | Black | 4 | Contacts Not Included | Polarizing Key |
TE Connectivity AMP Connectors 1-917808-3 | Crimp | 10.16 mm | 0.4 in | Glass Filled, Polyester, Thermoplastic | Male Pin | 105 ░C | -55 °C | Plug | Free Hanging (In-Line) | 2 | 0.4 in | 10.16 mm | Black | 6 | Contacts Not Included | Polarizing Key |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.22 | |
| 10 | $ 3.50 | |||
| 25 | $ 3.25 | |||
| 50 | $ 3.07 | |||
| 100 | $ 2.90 | |||
| 250 | $ 2.69 | |||
| 500 | $ 2.58 | |||
Description
General part information
917808 Series
6 Rectangular Connectors - Housings Plug Black 0.400" (10.16mm)
