2-917808-2

Active

TE Connectivity AMP Connectors

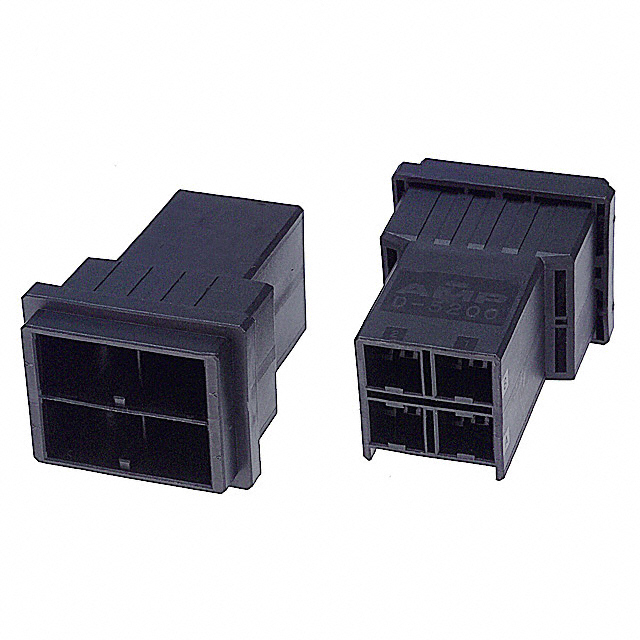

CONN PLUG HSG 4POS 10.16MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS 10.16MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-917808-2	917808 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Features	Polarizing Key	Polarizing Key
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4 - 6
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	10.16 mm	10.16 mm
Pitch [x]	0.4 in	0.4 in
Row Spacing	0.4 in	0.4 in
Row Spacing	10.16 mm	10.16 mm

CONN PLUG HSG 6POS 10.16MM

Part	Contact Termination	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Number of Rows	Row Spacing	Row Spacing	Color	Number of Positions	Note	Features
TE Connectivity AMP Connectors 2-917808-3	Crimp	10.16 mm	0.4 in	Glass Filled, Polyester, Thermoplastic	Male Pin	105 ░C	-55 °C	Plug	Free Hanging (In-Line)	2	0.4 in	10.16 mm	Black	6	Contacts Not Included	Polarizing Key
TE Connectivity AMP Connectors 2-917808-2	Crimp	10.16 mm	0.4 in	Glass Filled, Polyester, Thermoplastic	Male Pin	105 ░C	-55 °C	Plug	Free Hanging (In-Line)	2	0.4 in	10.16 mm	Black	4	Contacts Not Included	Polarizing Key
TE Connectivity AMP Connectors 1-917808-3	Crimp	10.16 mm	0.4 in	Glass Filled, Polyester, Thermoplastic	Male Pin	105 ░C	-55 °C	Plug	Free Hanging (In-Line)	2	0.4 in	10.16 mm	Black	6	Contacts Not Included	Polarizing Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Black 0.400" (10.16mm)
