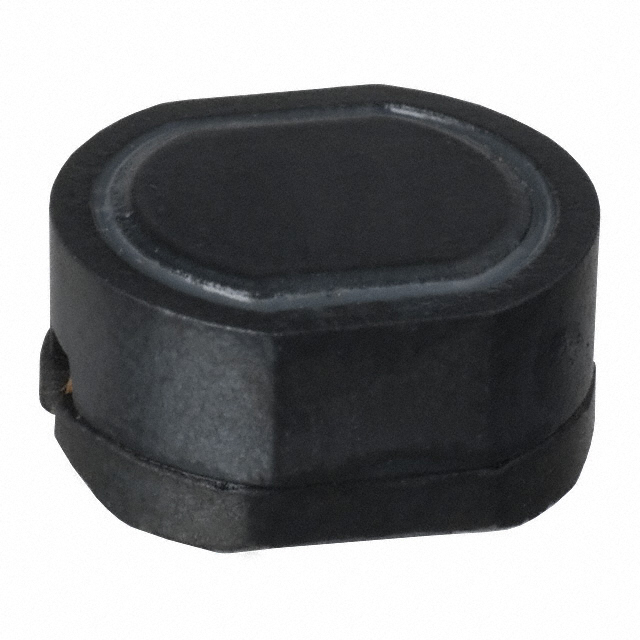

PM105S-150M

Obsolete

Bourns Inc.

FIXED IND 15UH 2.06A 70 MOHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 15UH 2.06A 70 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Material - Core	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Package / Case	Type	Mounting Type	DC Resistance (DCR) [Max]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR)	Inductance Frequency - Test
Bourns Inc. PM105S-181M	Ferrite	20 %	100 °C	-30 ░C	180 µH	Nonstandard	Drum Core Wirewound	Surface Mount	620 mOhm	Shielded	0.217 in	5.5 mm	600 mA	5 MHz	0.394 "	10 mm	9.2 mm	0.362 in
Bourns Inc. PM105S-470M	Ferrite	20 %	100 °C	-30 ░C	47 µH	Nonstandard	Drum Core Wirewound	Surface Mount		Shielded	0.217 in	5.5 mm	1.17 A	14 MHz	0.394 "	10 mm	9.2 mm	0.362 in	180 mOhm	2.52 MHz
Bourns Inc. PM105S-330M	Ferrite	20 %	100 °C	-30 ░C	33 µH	Nonstandard	Drum Core Wirewound	Surface Mount		Shielded	0.217 in	5.5 mm	1.39 A	16 MHz	0.394 "	10 mm	9.2 mm	0.362 in	120 mOhm	2.52 MHz
Bourns Inc. PM105S-391M	Ferrite	20 %	100 °C	-30 ░C	390 µH	Nonstandard	Drum Core Wirewound	Surface Mount		Shielded	0.217 in	5.5 mm	410 mA	4 MHz	0.394 "	10 mm	9.2 mm	0.362 in	1.18 Ohm
Bourns Inc. PM105S-150M	Ferrite	20 %	100 °C	-30 ░C	15 µH	Nonstandard	Drum Core Wirewound	Surface Mount	70 mOhm	Shielded	0.217 in	5.5 mm	2.06 A	27 MHz	0.394 "	10 mm	9.2 mm	0.362 in		2.52 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 µH Shielded Drum Core, Wirewound Inductor 2.06 A 70mOhm Max Nonstandard
