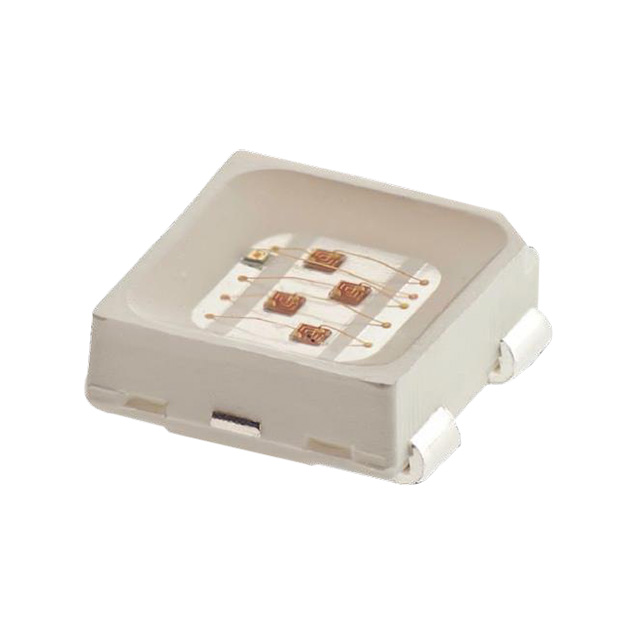

MLERED-A1-0000-000V01

Active

Cree LED

HIGH BRIGHTNESS LED, XLAMP ML-E SERIES, 630 NM, RED, 18.1 LM, 150 MA ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Cree LED

HIGH BRIGHTNESS LED, XLAMP ML-E SERIES, 630 NM, RED, 18.1 LM, 150 MA ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	MLERED-A1-0000-000V01

Color	Red
Current - Max [Max]	350 mA
Current - Test	150 mA
Height - Seated (Max)	1.33 mm
Height - Seated (Max) [Max] [z]	0.052 in
Lumens/Watt @ Current - Test	58 lm/W
Luminous Flux @ Current/Temperature	21 lm
Mounting Type	Surface Mount
Package / Case	4-SMD, J-Lead Exposed Pad
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 "
Size / Dimension [y]	0.124 "
Size / Dimension [y]	3.15 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	15 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.4 V
Wavelength [Max]	630 nm
Wavelength [Min]	620 nm

Part	Lumens/Watt @ Current - Test	Wavelength [Min]	Wavelength [Max]	Viewing Angle	Color	Thermal Resistance of Package [diameter]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Current - Max [Max]	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Supplier Device Package	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED MLERED-A1-0000-000V01	58 lm/W	620 nm	630 nm	125 °	Red	15 °C/W	1.33 mm	0.052 in	2.4 V	21 lm	350 mA	Surface Mount	4-SMD J-Lead Exposed Pad	3.5 mm	0.124 "	3.15 mm	0.138 "	150 mA	SMD
Cree LED MLERED-A1-0000-000W01	69 lm/W	620 nm	630 nm	125 °	Red	15 °C/W	1.33 mm	0.052 in	2.4 V		350 mA	Surface Mount	4-SMD J-Lead Exposed Pad	3.5 mm	0.124 "	3.15 mm	0.138 "	150 mA	SMD	24 lm	27 lm
Cree LED MLERED-A1-0000-000U01	44 lm/W	620 nm	630 nm	125 °	Red	15 °C/W	1.33 mm	0.052 in	2.4 V	16 lm	350 mA	Surface Mount	4-SMD J-Lead Exposed Pad	3.5 mm	0.124 "	3.15 mm	0.138 "	150 mA	SMD	14 lm	18 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Available in white (2600 to 8300K CCT) and 80-, 85- and 90-CRI minimum

Available in royal blue, blue, green, amber and red

Available in parallel and series Vf configurations for white and colour
