A6T-1102(VNM)

Active

Omron Electronics Inc-EMC Div

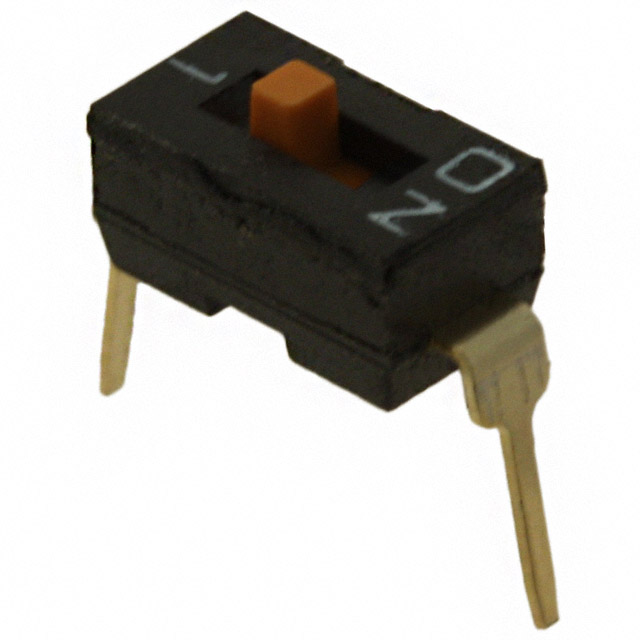

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6T-1102(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6T-1102(VNM)

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Circuit	SPST
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Features	Tape Seal
Height Above Board	3.6 mm
Height Above Board	0.142 in
Length [x]	3.48 mm
Length [x]	0.137 "
Mechanical Life	1000 Cycles
Mounting Type	Through Hole
Number of Positions	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	True

A6T Series

Part	Actuator Type	Current Rating (Amps)	Voltage Rating	Pitch [x]	Pitch	Pitch [x]	Circuit	Electrical Life	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Mechanical Life	Length	Length	Height Above Board	Height Above Board	Termination Style	Length [x]	Length [x]	Height Above Board [z]	Height Above Board [z]	Contact Finish
Omron Electronics Inc-EMC Div A6T-8101(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-20 C	70 °C	8	Through Hole	1000 Cycles	21.26 mm	0.837 in	3.6 mm	0.142 in	PC Pin
Omron Electronics Inc-EMC Div A6TN-5104	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-30 ░C	85 °C		Through Hole				5.8 mm	0.228 in	PC Pin	14.63 mm	0.576 "
Omron Electronics Inc-EMC Div A6TN-4101	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-30 ░C	85 °C	4	Through Hole		12.09 mm	0.476 in			PC Pin			0.189 in	4.8 mm
Omron Electronics Inc-EMC Div A6T-5101(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-20 C	70 °C		Through Hole	1000 Cycles	13.64 mm	0.537 in	3.6 mm	0.142 in	PC Pin
Omron Electronics Inc-EMC Div A6TN-6104	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-30 ░C	85 °C	6	Through Hole		17.17 mm	0.676 "	5.8 mm	0.228 in	PC Pin
Omron Electronics Inc-EMC Div A6TN-9104	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-30 ░C	85 °C	9	Through Hole				5.8 mm	0.228 in	PC Pin	24.79 mm	0.976 in
Omron Electronics Inc-EMC Div A6T-1104(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-20 C	70 °C	1	Through Hole	1000 Cycles			4.2 mm	0.165 "	PC Pin	3.48 mm	0.137 "
Omron Electronics Inc-EMC Div A6TN0003E	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-30 ░C	85 °C		Through Hole		9.6 mm	0.378 in			PC Pin			0.189 in	4.8 mm
Omron Electronics Inc-EMC Div A6TR-0101	Piano	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-20 C	70 °C	10	Through Hole Right Angle		25.3 mm	0.996 in			PC Pin			0.197 in	5 mm	Gold
Omron Electronics Inc-EMC Div A6T-0104(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-20 C	70 °C	10	Through Hole	1000 Cycles			4.2 mm	0.165 "	PC Pin	26.34 mm	1.037 in
