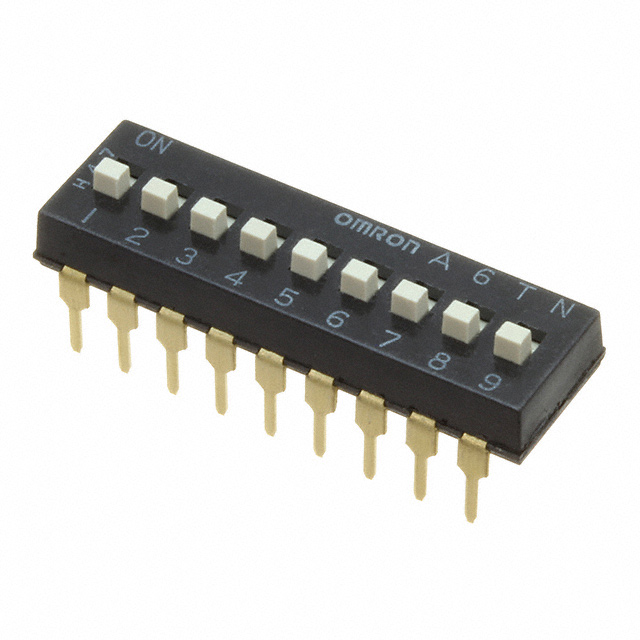

A6TN-9104

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6TN-9104

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6TN-9104

Actuator Level	Raised
Actuator Type	Slide (Standard)
Circuit	SPST
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	5.8 mm
Height Above Board	0.228 in
Length [x]	0.976 in
Length [x]	24.79 mm
Mounting Type	Through Hole
Number of Positions	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	True

A6T Series

Part	Actuator Type	Current Rating (Amps)	Voltage Rating	Pitch [x]	Pitch	Pitch [x]	Circuit	Electrical Life	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Mechanical Life	Length	Length	Height Above Board	Height Above Board	Termination Style	Length [x]	Length [x]	Height Above Board [z]	Height Above Board [z]	Contact Finish
Omron Electronics Inc-EMC Div A6T-8101(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-20 C	70 °C	8	Through Hole	1000 Cycles	21.26 mm	0.837 in	3.6 mm	0.142 in	PC Pin
Omron Electronics Inc-EMC Div A6TN-5104	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-30 ░C	85 °C		Through Hole				5.8 mm	0.228 in	PC Pin	14.63 mm	0.576 "
Omron Electronics Inc-EMC Div A6TN-4101	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-30 ░C	85 °C	4	Through Hole		12.09 mm	0.476 in			PC Pin			0.189 in	4.8 mm
Omron Electronics Inc-EMC Div A6T-5101(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-20 C	70 °C		Through Hole	1000 Cycles	13.64 mm	0.537 in	3.6 mm	0.142 in	PC Pin
Omron Electronics Inc-EMC Div A6TN-6104	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-30 ░C	85 °C	6	Through Hole		17.17 mm	0.676 "	5.8 mm	0.228 in	PC Pin
Omron Electronics Inc-EMC Div A6TN-9104	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-30 ░C	85 °C	9	Through Hole				5.8 mm	0.228 in	PC Pin	24.79 mm	0.976 in
Omron Electronics Inc-EMC Div A6T-1104(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-20 C	70 °C	1	Through Hole	1000 Cycles			4.2 mm	0.165 "	PC Pin	3.48 mm	0.137 "
Omron Electronics Inc-EMC Div A6TN0003E	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-30 ░C	85 °C		Through Hole		9.6 mm	0.378 in			PC Pin			0.189 in	4.8 mm
Omron Electronics Inc-EMC Div A6TR-0101	Piano	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Flush Recessed	-20 C	70 °C	10	Through Hole Right Angle		25.3 mm	0.996 in			PC Pin			0.197 in	5 mm	Gold
Omron Electronics Inc-EMC Div A6T-0104(VNM)	Slide (Standard)	25 mA	24 VDC	0.1 in	Full	2.54 mm	SPST	1000 Cycles	Raised	-20 C	70 °C	10	Through Hole	1000 Cycles			4.2 mm	0.165 "	PC Pin	26.34 mm	1.037 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.18
		10	$ 2.59
		25	$ 2.38
		100	$ 2.09
		250	$ 1.92
		500	$ 1.79
		1000	$ 1.67
		2500	$ 1.53
		5000	$ 1.43
