General part information

D38999/24WF Series

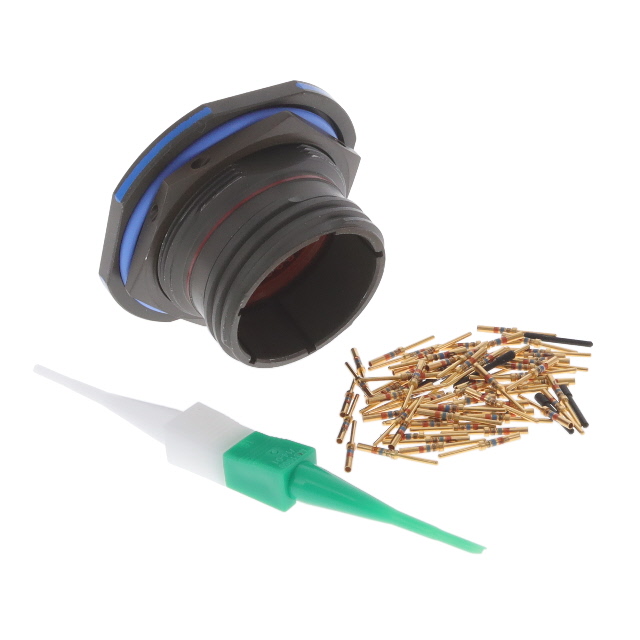

66 Position Circular Connector Receptacle, Male Pins Crimp

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WF35PN

Applications	Military, Aerospace, Marine, Aviation
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Threaded
Features	Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	66
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	19
Shell Size (MIL)	F
Shielding	Shielded
Termination	Crimp

D38999/24WF Series

Part	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Number of Positions	Contact Size Options	Shell Finish	Contact Shape	Grade	Type	Shell Size (MIL)	Note	Fastening Type	Contact Type	Connector Type	Mounting Type	Qualification	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color	Shell Material	Shielding	Mounting Feature	Ingress Protection	Insert Material	Orientation	Contact Finish - Mating	Color	Primary Material	Current Rating	Termination	Material Flammability Rating	Shell Size - Insert Length	Shell Size - Insert Width	Contact Material	Ingress Protection Description	Ingress Protection IP Rating	Applications	Contact Finish Thickness - Mating
Amphenol Aerospace Operations D38999/24WF28PAL
Amphenol Aerospace Operations D38999/24WF35SNL	35	19	66	22D	Cadmium	Circular	Military	For Female Sockets	F	Contacts Not Included	Threaded	Crimp	Receptacle Housing	Panel Mount	MIL-DTL-38999 Series III	-65 °C	175 °C	Olive Drab	Aluminum	Unshielded	Bulkhead Front Side Nut	Environment Resistant	Thermoplastic	N (Normal)
Amphenol Aerospace Operations D38999/24WF35SN
Amphenol Aerospace Operations D38999/24WF35SN	35	19	66		Olive Drab Cadmium		Military		F		Threaded		Female Sockets Receptacle	Panel Mount	MIL-DTL-38999 Series III	-65 °C	125 °C		Aluminum	Shielded	Bulkhead Front Side Nut	Waterproof		N (Normal)	Gold	Olive Drab	Metal	5 A	Crimp	UL94 V-0
Amphenol Aerospace Operations D38999/24WF11PN			11		Olive Drab Cadmium		Military		F		Threaded		Male Pins Receptacle	Panel Mount	MIL-DTL-38999 Series III	-65 °C	175 °C		Aluminum	Shielded	Bulkhead Front Side Nut		Thermoplastic	N (Normal)	Gold	Olive Drab	Metal	13 A	Crimp		19 mm	11 mm	Copper Alloy	Dust Tight Waterproof	IP67	Aviation Marine Military	50 µin
Amphenol Aerospace Operations D38999/24WF28SA	28	19	28						F		Threaded		Female Sockets Receptacle	Panel Mount						Shielded	Bulkhead Front Side Nut			A	Gold	Olive Drab			Crimp							Aerospace Aviation Military
Amphenol Aerospace Operations D38999/24WF35HN	35	19	66		Olive Drab Cadmium		Military		F		Threaded		Male Pins Receptacle	Panel Mount	MIL-DTL-38999 Series III	-65 °C	175 °C		Aluminum	Shielded	Bulkhead Front Side Nut	Environment Resistant		N (Normal)	Gold	Olive Drab	Metal		Crimp				Copper Alloy			Aerospace Aviation Military	100 µin
Amphenol Aerospace Operations D38999/24WF35SN	35	19	66		Olive Drab Cadmium		Military		F		Threaded		Female Sockets Receptacle	Panel Mount	MIL-DTL-38999 Series III	-65 °C	175 °C		Aluminum	Shielded	Bulkhead Front Side Nut	Environment Resistant		N (Normal)	Gold	Olive Drab	Metal		Crimp				Copper Alloy			Aerospace Aviation Marine Military	50 µin
Amphenol Aerospace Operations D38999/24WF35PN	35	19	66		Olive Drab Cadmium		Military		F		Threaded		Male Pins Receptacle	Panel Mount	MIL-DTL-38999 Series III	-65 °C	175 °C		Aluminum	Shielded	Bulkhead Front Side Nut		Thermoplastic	N (Normal)	Gold	Olive Drab	Metal	5 A	Crimp				Copper Alloy	Dust Tight Waterproof	IP67	Aviation Marine Military	50 µin
Amphenol Aerospace Operations D38999/24WF28PN	28	19	28		Olive Drab Cadmium		Military		F		Threaded		Male Pins Receptacle	Panel Mount	MIL-DTL-38999 Series III	-65 °C	175 °C		Aluminum	Shielded	Bulkhead Front Side Nut	Environment Resistant		N (Normal)	Gold	Olive Drab	Metal		Crimp				Copper Alloy			Aviation Marine Military	50 µin
