1553WCGY

Active

Hammond Manufacturing

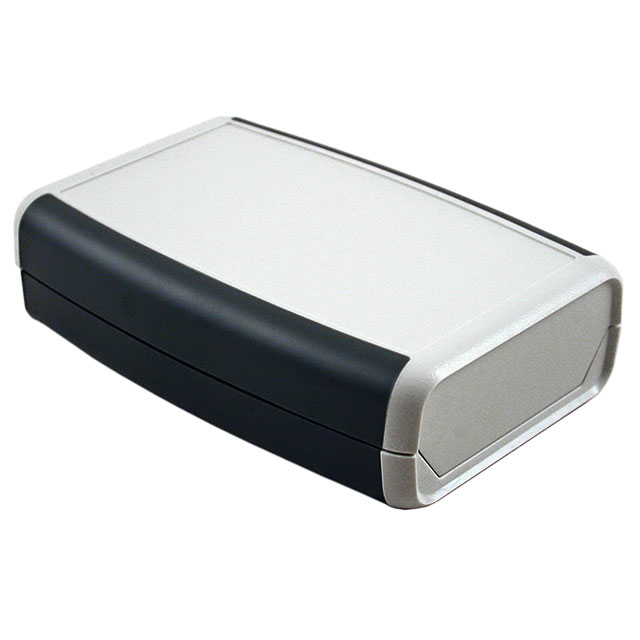

LIGHT GRAY ACRYLONITRILE BUTADIENE STYRENE SOFT SIDED HAND HELD ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

Documents1553WB Drawing

1553WCGY

Active

Hammond Manufacturing

LIGHT GRAY ACRYLONITRILE BUTADIENE STYRENE SOFT SIDED HAND HELD ENCLOSURE

Deep-Dive with AI

Documents1553WB Drawing

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	83	$ 0.73
Digikey	Bulk	1	$ 17.58
		5	$ 16.55
		10	$ 15.51
		25	$ 14.48
		50	$ 14.22
		100	$ 13.96
		250	$ 13.76
		500	$ 13.45

Description

General part information

1553 Series

Box ABS Gray Hand Held, Split Sides and End Panel(s) 4.615" L x 3.109" W (117.22mm x 78.97mm) X 1.260" (32.00mm)

Documents

Technical documentation and resources

1553WB Drawing

Datasheet

Specification	1553WCGY	1553 Series

Accessory Type	-	Screws
Area (L x W)	-	37.5 - 210 cm²
Area (L x W)	-	5.81 - 32.5 in²
Area (L x W)	-	20.4 in²
Area (L x W)	-	132 cm²
Circuit Pattern	-	2 Hole Pad (Single Side)
Color	Gray	Black, Gray, Red, Translucent - Blue, Yellow
Container Type	Box	Box
Design	-	Split Sides, Hand Held
Features	PCB Supports, Sealing Gasket	PCB Supports, Battery Compartment, 9V and AA, Flame Retardant, Sealing Gasket
For Use With/Related Products	-	Enclosures
Height	-	16.99 - 27.94 mm
Height	-	0.669 - 1.1 in
Height [diameter]	1.26 in	1.26 in
Height [diameter]	32 mm	32 mm
Hole Diameter	-	0.042 " (inches)
Hole Diameter	-	1.07 mm
Material	ABS	ABS, Acrylonitrile Butadiene Styrene (ABS)
Material Flammability Rating	UL94 V-0	UL94 HB, UL94 V-0
Pitch	-	2.54 mm
Pitch	-	0.1 in
Plating	-	Non-Plated Through Hole (NPTH)
Proto Board Type	-	Breadboard, Prepunched Insulating
Ratings	IP65	IP65
Size / Dimension	-	89.99 mm
Size / Dimension [x]	117.22 mm	75 - 210 mm
Size / Dimension [x]	4.615 "	2.953 - 8.268 "
Size / Dimension [y]	3.109 in	1.972 - 3.937 in
Size / Dimension [y]	78.97 mm	50.08 - 100 mm
Thickness	3 mm	2.01 - 3 mm
Thickness	0.118 in	0.079 - 0.118 in

Part

Material Flammability Rating

Height [z]

Thickness

Features

Design

Size / Dimension [y]

Size / Dimension [x]

Container Type

Material

Color

Height [diameter]

Area (L x W)

Area (L x W) [custom]

Ratings

Pitch [x]

Proto Board Type

Plating

Hole Diameter

Circuit Pattern

Size / Dimension [y]

For Use With/Related Products

Accessory Type

Hammond Manufacturing

1553BBKBKBAT

UL94 HB

24 mm

0.945 in

2.74 mm

0.108 in

9V and AA, Battery Compartment, PCB Supports

Hand Held, Split Sides

3.109 in

78.97 mm

117.22 mm

4.615 "

Box

ABS

Black

Hammond Manufacturing

1553BBKBAT

UL94 HB

24 mm

0.945 in

2.74 mm

0.108 in

9V and AA, Battery Compartment, PCB Supports

Hand Held, Split Sides

3.109 in

78.97 mm

117.22 mm

4.615 "

Box

ABS

Black

Hammond Manufacturing

1553CGY

UL94 HB

2.49 mm

0.098 in

PCB Supports

Hand Held, Split Sides

3.109 in

78.97 mm

117.22 mm

4.615 "

Box

ABS

Gray

1.26 in

32 mm

Hammond Manufacturing

1553AAGY

UL94 HB

16.99 mm

0.669 in

2.01 mm

0.079 in

PCB Supports

Hand Held, Split Sides

1.972 in

50.08 mm

75 mm

2.953 in

Box

ABS

Gray

37.5 cm²

5.81 in²

Hammond Manufacturing

1553BRDBKBAT

UL94 HB

24 mm

0.945 in

2.74 mm

0.108 in

9V and AA, Battery Compartment, PCB Supports

Hand Held, Split Sides

3.109 in

78.97 mm

117.22 mm

4.615 "

Box

ABS

Red

Hammond Manufacturing

1553AABK

UL94 HB

16.99 mm

0.669 in

2.01 mm

0.079 in

PCB Supports

Hand Held, Split Sides

1.972 in

50.08 mm

75 mm

2.953 in

Box

ABS

Black

37.5 cm²

5.81 in²

Hammond Manufacturing

1553TTGYBAT

UL94 V-0

27.94 mm

1.1 in

2.29 mm

0.09 in

9V and AA, Battery Compartment, Flame Retardant, PCB Supports

3.15 in

80 mm

165 mm

6.496 in

Box

ABS

Gray

20.4 in²

132 cm²

Hammond Manufacturing

1553DGY

UL94 HB

25 mm

0.984 in

2.74 mm

0.108 in

PCB Supports

Hand Held, Split Sides

3.504 in

89 mm

147.24 mm

5.797 "

Box

ABS

Gray

131 cm²

20.3 in²

Hammond Manufacturing

1553WCBK

UL94 V-0

3 mm

0.118 in

PCB Supports, Sealing Gasket

3.109 in

78.97 mm

117.22 mm

4.615 "

Box

ABS

Black

1.26 in

32 mm

IP65

Hammond Manufacturing

1553BGY

UL94 HB

24 mm

0.945 in

2.74 mm

0.108 in

PCB Supports

Hand Held, Split Sides

3.109 in

78.97 mm

117.22 mm

4.615 "

Box

ABS

Gray

Part	Material Flammability Rating	Height [z]	Height [z]	Thickness	Thickness	Features	Design	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Material	Color	Height [diameter]	Height [diameter]	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Ratings
Hammond Manufacturing 1553BBKBKBAT	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	9V and AA, Battery Compartment, PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Black
Hammond Manufacturing 1553BBKBAT	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	9V and AA, Battery Compartment, PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Black
Hammond Manufacturing 1553CGY	UL94 HB			2.49 mm	0.098 in	PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Gray	1.26 in	32 mm
Hammond Manufacturing 1553AAGY	UL94 HB	16.99 mm	0.669 in	2.01 mm	0.079 in	PCB Supports	Hand Held, Split Sides	1.972 in	50.08 mm	75 mm	2.953 in	Box	ABS	Gray			37.5 cm²	5.81 in²
Hammond Manufacturing 1553BRDBKBAT	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	9V and AA, Battery Compartment, PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Red
Hammond Manufacturing 1553AABK	UL94 HB	16.99 mm	0.669 in	2.01 mm	0.079 in	PCB Supports	Hand Held, Split Sides	1.972 in	50.08 mm	75 mm	2.953 in	Box	ABS	Black			37.5 cm²	5.81 in²
Hammond Manufacturing 1553TTGYBAT	UL94 V-0	27.94 mm	1.1 in	2.29 mm	0.09 in	9V and AA, Battery Compartment, Flame Retardant, PCB Supports		3.15 in	80 mm	165 mm	6.496 in	Box	ABS	Gray					20.4 in²	132 cm²
Hammond Manufacturing 1553DGY	UL94 HB	25 mm	0.984 in	2.74 mm	0.108 in	PCB Supports	Hand Held, Split Sides	3.504 in	89 mm	147.24 mm	5.797 "	Box	ABS	Gray			131 cm²	20.3 in²
Hammond Manufacturing 1553WCBK	UL94 V-0			3 mm	0.118 in	PCB Supports, Sealing Gasket		3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Black	1.26 in	32 mm					IP65
Hammond Manufacturing 1553BGY	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Gray
