1553DGY

Active

Hammond Manufacturing

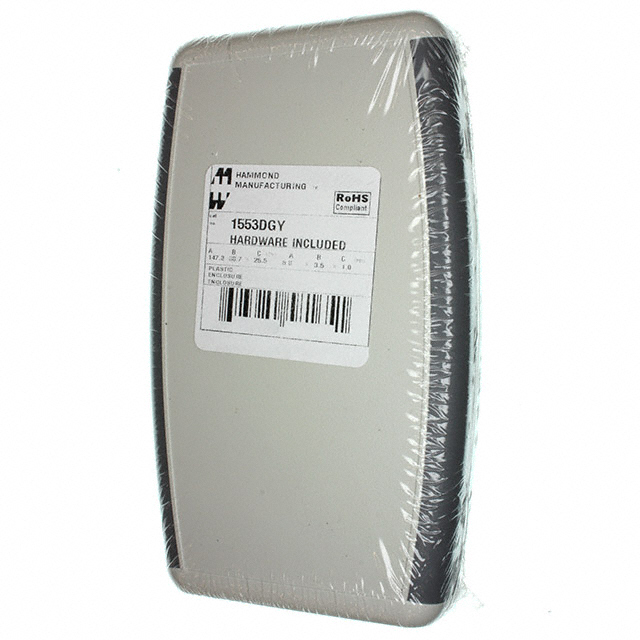

BOX ABS GRAY 5.8"L X 3.50"W

Deep-Dive with AI

Search across all available documentation for this part.

1553DGY

Active

Hammond Manufacturing

BOX ABS GRAY 5.8"L X 3.50"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.16
		5	$ 9.53
		10	$ 8.91
		25	$ 8.15
		50	$ 7.61
		100	$ 7.11
		250	$ 6.64

Description

General part information

1553 Series

Box ABS Gray Hand Held, Split Sides 5.797" L x 3.504" W (147.24mm x 89.00mm) X 0.984" (25.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1553DGY	1553 Series

Accessory Type	-	Screws
Area (L x W)	20.3 in²	5.81 - 32.5 in²
Area (L x W)	131 cm²	37.5 - 210 cm²
Area (L x W)	-	20.4 in²
Area (L x W)	-	132 cm²
Circuit Pattern	-	2 Hole Pad (Single Side)
Color	Gray	Black, Gray, Red, Translucent - Blue, Yellow
Container Type	Box	Box
Design	Split Sides, Hand Held	Split Sides, Hand Held
Features	PCB Supports	PCB Supports, Battery Compartment, 9V and AA, Flame Retardant, Sealing Gasket
For Use With/Related Products	-	Enclosures
Height	-	1.26 in
Height	-	32 mm
Height [z]	25 mm	16.99 - 27.94 mm
Height [z]	0.984 in	0.669 - 1.1 in
Hole Diameter	-	0.042 " (inches)
Hole Diameter	-	1.07 mm
Material	ABS	ABS, Acrylonitrile Butadiene Styrene (ABS)
Material Flammability Rating	UL94 HB	UL94 HB, UL94 V-0
Pitch	-	2.54 mm
Pitch	-	0.1 in
Plating	-	Non-Plated Through Hole (NPTH)
Proto Board Type	-	Breadboard, Prepunched Insulating
Ratings	-	IP65
Size / Dimension	-	89.99 mm
Size / Dimension [x]	5.797 "	2.953 - 8.268 "
Size / Dimension [x]	147.24 mm	75 - 210 mm
Size / Dimension [y]	89 mm	50.08 - 100 mm
Size / Dimension [y]	3.504 in	1.972 - 3.937 in
Thickness	2.74 mm	2.01 - 3 mm
Thickness	0.108 in	0.079 - 0.118 in

1553 Series

BOX ABS BLACK 4.62"L X 3.11"W

Part	Material Flammability Rating	Height [z]	Height [z]	Thickness	Thickness	Features	Design	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Material	Color	Height [diameter]	Height [diameter]	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Ratings
Hammond Manufacturing 1553BBKBKBAT	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	9V and AA, Battery Compartment, PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Black
Hammond Manufacturing 1553BBKBAT	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	9V and AA, Battery Compartment, PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Black
Hammond Manufacturing 1553CGY	UL94 HB			2.49 mm	0.098 in	PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Gray	1.26 in	32 mm
Hammond Manufacturing 1553AAGY	UL94 HB	16.99 mm	0.669 in	2.01 mm	0.079 in	PCB Supports	Hand Held, Split Sides	1.972 in	50.08 mm	75 mm	2.953 in	Box	ABS	Gray			37.5 cm²	5.81 in²
Hammond Manufacturing 1553BRDBKBAT	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	9V and AA, Battery Compartment, PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Red
Hammond Manufacturing 1553AABK	UL94 HB	16.99 mm	0.669 in	2.01 mm	0.079 in	PCB Supports	Hand Held, Split Sides	1.972 in	50.08 mm	75 mm	2.953 in	Box	ABS	Black			37.5 cm²	5.81 in²
Hammond Manufacturing 1553TTGYBAT	UL94 V-0	27.94 mm	1.1 in	2.29 mm	0.09 in	9V and AA, Battery Compartment, Flame Retardant, PCB Supports		3.15 in	80 mm	165 mm	6.496 in	Box	ABS	Gray					20.4 in²	132 cm²
Hammond Manufacturing 1553DGY	UL94 HB	25 mm	0.984 in	2.74 mm	0.108 in	PCB Supports	Hand Held, Split Sides	3.504 in	89 mm	147.24 mm	5.797 "	Box	ABS	Gray			131 cm²	20.3 in²
Hammond Manufacturing 1553WCBK	UL94 V-0			3 mm	0.118 in	PCB Supports, Sealing Gasket		3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Black	1.26 in	32 mm					IP65
Hammond Manufacturing 1553BGY	UL94 HB	24 mm	0.945 in	2.74 mm	0.108 in	PCB Supports	Hand Held, Split Sides	3.109 in	78.97 mm	117.22 mm	4.615 "	Box	ABS	Gray
