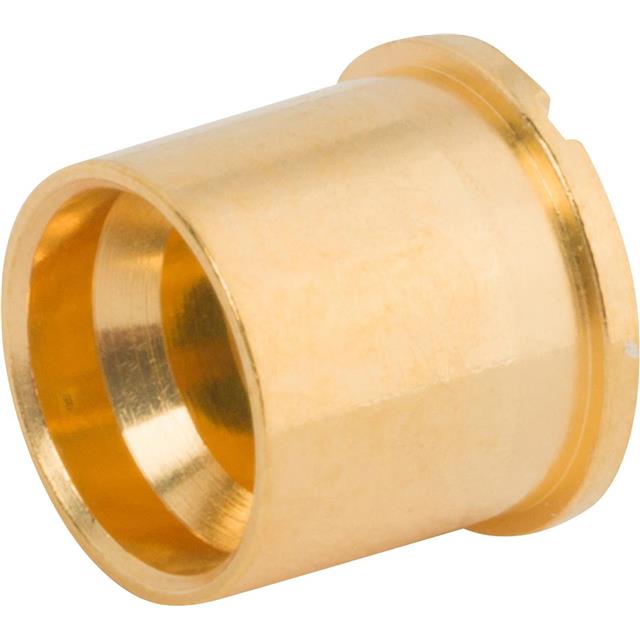

1211-20015

Active

Amphenol SV Microwave

SMP MALE PCB SURFACE MOUNT CONNE

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMP MALE PCB SURFACE MOUNT CONNE

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Body Finish	Center Contact Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Fastening Type	Impedance	Features	Connector Type	Housing Color	Contact Termination	Mating Cycles	Number of Ports	Frequency - Max [Max]
Amphenol SV Microwave 1211-20019	Steel	Gold	Gold	Surface Mount	-65 ░C	165 °C	Solder	Snap-On	50 Ohms	Pre-Tinned (J-STD-001) Smooth Bore	Male Pin Plug	Gold	Solder	1000	1	26.5 GHz
Amphenol SV Microwave 1211-20016	Steel	Gold	Gold	Surface Mount	-65 ░C	165 °C	Solder	Snap-On	50 Ohms	Full Detent	Male Pin Plug	Gold	Solder		1	26.5 GHz
Amphenol SV Microwave 1211-20015	Steel	Gold	Gold	Surface Mount	-65 ░C	165 °C	Solder	Snap-On	50 Ohms	Smooth Bore	Male Pin Plug	Gold	Solder	1000	1	26.5 GHz
Amphenol SV Microwave 1211-20021	Steel	Gold	Gold	Surface Mount	-65 ░C	165 °C	Solder	Snap-On	50 Ohms	Full Detent Pre-Tinned	Male Pin Plug	Gold	Solder		1	26.5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 57.39

General part information

SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
