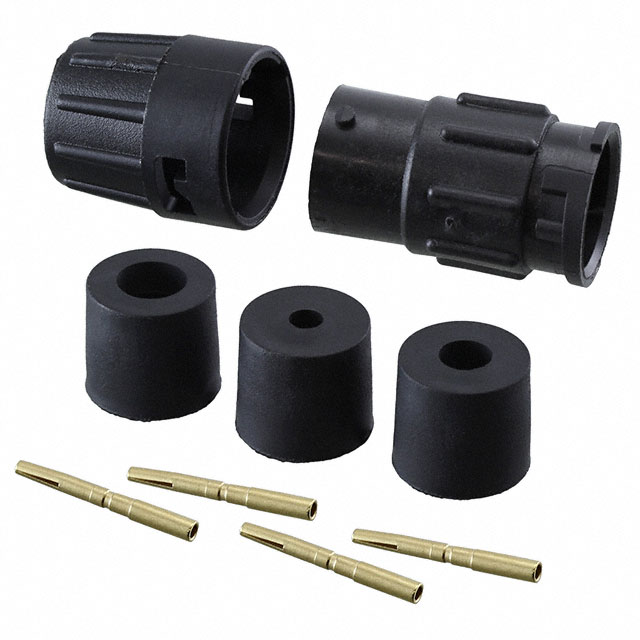

8280-4SG-3DC

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-4SG-3DC

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.30
		10	$ 5.67
		25	$ 5.34
		50	$ 5.21
		100	$ 5.07
		300	$ 4.83

Description

General part information

8280-4SG Series

4 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8280-4SG-3DC	8280-4SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	5.33 - 5.59 mm
Cable Opening	-	5.84 mm
Cable Opening	-	0.21 - 0.22 in
Cable Opening	-	0.23 - 0.25 in
Cable Opening	-	6.35 mm
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8280-4SG Series

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Voltage Rating	Mounting Type	Ingress Protection	Termination	Contact Material	Shielding	Features	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Orientation	Number of Positions	Color	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Fastening Type	Applications	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8280-4SG-516	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Brass	Unshielded	Backshell	Gold	Varies by Wire Gauge	Receptacle, Female Sockets	0.16 in	0.18 in	4.06 mm	4.57 mm	Keyed	4	Black	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Bayonet Lock	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft 8280-4SG-3DC	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Brass	Unshielded	Backshell	Gold	Varies by Wire Gauge	Receptacle, Female Sockets					Keyed	4	Black	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Bayonet Lock	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft 8280-4SG-311	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Brass	Unshielded	Backshell	Gold	Varies by Wire Gauge	Receptacle, Female Sockets					Keyed	4	Black	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Bayonet Lock	Automotive, Communication Systems, Instrumentation	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 8280-4SG-321	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Brass	Unshielded	Backshell	Gold	Varies by Wire Gauge	Receptacle, Female Sockets					Keyed	4	Black	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Bayonet Lock	Automotive, Communication Systems, Instrumentation				5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 8280-4SG-522	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Brass	Unshielded	Backshell	Gold	Varies by Wire Gauge	Receptacle, Female Sockets					Keyed	4	Black	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Bayonet Lock	Automotive, Communication Systems, Instrumentation				5.59 mm		0.22 in	0.25 in	6.35 mm
Conxall/Switchcraft 8280-4SG-513	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Brass	Unshielded	Backshell	Gold	Varies by Wire Gauge	Receptacle, Female Sockets					Keyed	4	Black	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Bayonet Lock	Automotive, Communication Systems, Instrumentation									0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 8280-4SG-315	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Brass	Unshielded	Backshell	Gold	Varies by Wire Gauge	Receptacle, Female Sockets					Keyed	4	Black	Nylon, Polyamide (PA)	-40 °C	115 °C	Plastic	Bayonet Lock	Automotive, Communication Systems, Instrumentation									0.15 in, 0.17 in	3.81 mm, 4.32 mm
