HDMIFTV2AZNF459

Active

Amphenol Socapex

HDMIFTV SQ FLG RECEPT, A CODE, B

Search across all available documentation for this part.

Active

Amphenol Socapex

HDMIFTV SQ FLG RECEPT, A CODE, B

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Ingress Protection	Shell/Shielding Material	Mounting Feature	Connector Type	Shielding	Gender	Termination	Specifications
Amphenol Socapex HDMIFTV2APEG	Flange Panel Mount	HDMI Receptacle	HDMI Receptacle
Amphenol Socapex HDMIFTV2ANF459	Panel Mount Through Hole			1	85 °C	-40 °C	19	IP68 - Dust Tight Waterproof	Aluminum	Flange	HDMI	Shielded	Receptacle	Solder	HDMI 2.0
Amphenol Socapex HDMIFTV2AZN	Flange Panel Mount	HDMI Receptacle	HDMI Receptacle
Amphenol Socapex HDMIFTV2APEN	Flange Panel Mount	HDMI Receptacle	HDMI Receptacle
Amphenol Socapex HDMIFTV2APEZN	Flange Panel Mount	HDMI Receptacle	HDMI Receptacle
Amphenol Socapex HDMIFTV2AZNF459	Panel Mount Through Hole			1	85 °C	-40 °C	19	IP68 - Dust Tight Waterproof	Aluminum	Flange	HDMI	Shielded	Receptacle	Solder	HDMI 2.0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 184.00

General part information

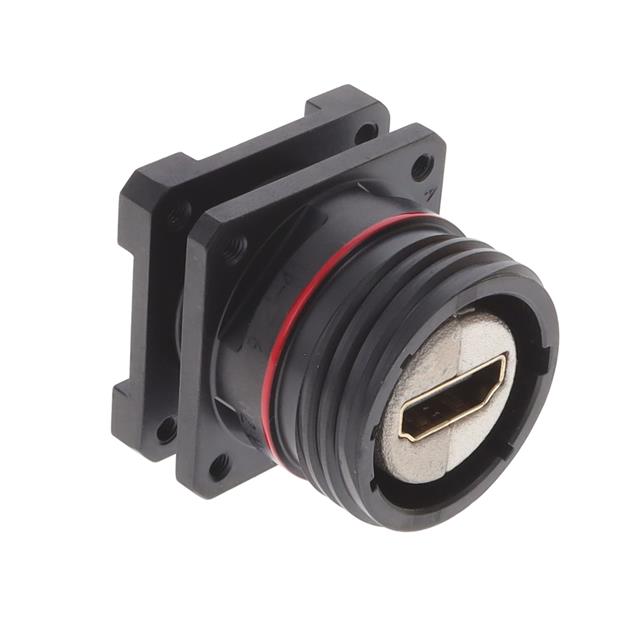

HDMI HDMI 2.0 Receptacle Connector 19 Position Panel Mount, Through Hole

Technical documentation and resources
