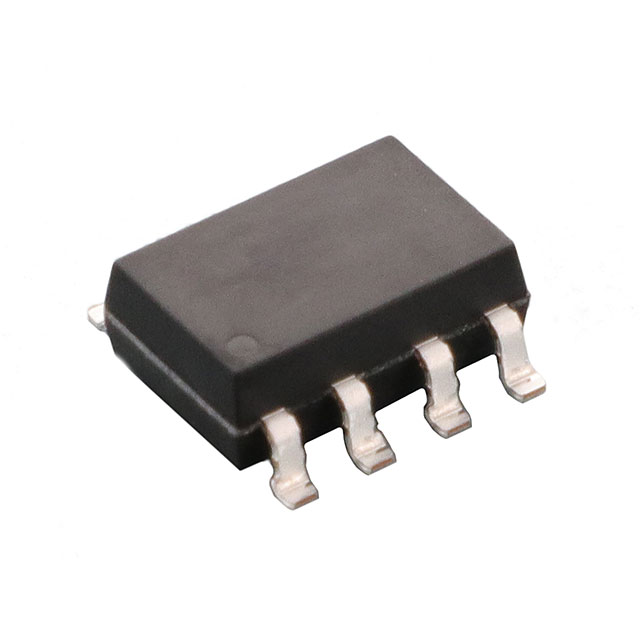

VOR2121B8T
ActiveVishay General Semiconductor - Diodes Division
SSR RELAY SPST-NO 200MA 0-250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VOR2121B8T
ActiveVishay General Semiconductor - Diodes Division
SSR RELAY SPST-NO 200MA 0-250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VOR2121B8T |
|---|---|
| Approval Agency | cUL, DIN, UL |
| Circuit | SPST-NO (1 Form A) x 2 |
| Load Current | 200 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 15 Ohm |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Package / Case | 8-SMD |
| Supplier Device Package | 8-SMD |
| Termination Style | Gull Wing |
| Voltage - Input | 1.36 VDC |
| Voltage - Load [Max] | 250 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.24 | |
| 10 | $ 3.98 | |||
| 25 | $ 3.54 | |||
| 50 | $ 3.36 | |||
| 100 | $ 3.18 | |||
| 250 | $ 2.83 | |||
| 500 | $ 2.65 | |||
| Digi-ReelÛ | 1 | $ 4.24 | ||
| 10 | $ 3.98 | |||
| 25 | $ 3.54 | |||
| 50 | $ 3.36 | |||
| 100 | $ 3.18 | |||
| 250 | $ 2.83 | |||
| 500 | $ 2.65 | |||
| Tape & Reel (TR) | 1000 | $ 2.47 | ||
| 3000 | $ 2.43 | |||
Description
General part information
VOR2121 Series
Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
