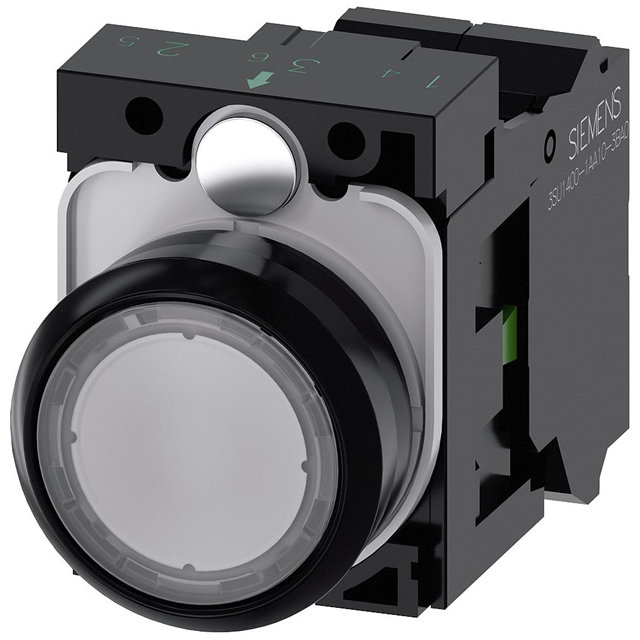

3SU11020AB703BA0

Active

Siemens

ILLUMINATED PUSHBUTTON, MOM, CLR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SIRIUS ACT Profinet Integration WhitePaper +1

3SU11020AB703BA0

Active

Siemens

ILLUMINATED PUSHBUTTON, MOM, CLR

Deep-Dive with AI

DocumentsDatasheet SIRIUS ACT Profinet Integration WhitePaper +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SU11020AB703BA0

Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	10 A
Electrical Life	10000000 Cycles
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	3000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Spring Terminal
Type	Illuminated, Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1102 Series

Part	Termination Style	Illumination Type, Color	Actuator Type	Ingress Protection	Mechanical Life	Switch Function	Panel Cutout Dimensions [diameter]	Electrical Life	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Illumination Voltage (Nominal)	Voltage Rating - DC	Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - AC
Siemens 3SU11020AB201CA0	Screw Terminal	LED Red	Button Round	IP66 IP67 IP69K	3000000 Cycles	On-Mom	22.3 mm	10000000 Cycles	Red	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	SPST-NC	500 V
Siemens 3SU11020AB201BA0	Screw Terminal	LED Red	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom	22.3 mm	10000000 Cycles	Red	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	SPST-NO	500 V
Siemens 3SU11020AB503FA0	Spring Terminal	Blue LED	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom On-Mom	22.3 mm	10000000 Cycles	Blue	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	DPST-NO/NC	500 V
Siemens 3SU11020AB601FA0	Screw Terminal	LED White	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom On-Mom	22.3 mm	10000000 Cycles	White	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	DPST-NO/NC	500 V
Siemens 3SU11020AB701BA0	Screw Terminal	LED White	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom	22.3 mm	10000000 Cycles	Clear	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	SPST-NO	500 V
Siemens 3SU11020AB603BA0	Spring Terminal	LED White	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom	22.3 mm	10000000 Cycles	White	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	SPST-NO	500 V
Siemens 3SU11020AB703FA0	Spring Terminal	LED White	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom On-Mom	22.3 mm	10000000 Cycles	Clear	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	DPST-NO/NC	500 V
Siemens 3SU11020AB201FA0	Screw Terminal	LED Red	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom On-Mom	22.3 mm	10000000 Cycles	Red	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	DPST-NO/NC	500 V
Siemens 3SU11020AB403FA0	Spring Terminal	Green LED	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom On-Mom	22.3 mm	10000000 Cycles	Green	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	DPST-NO/NC	500 V
Siemens 3SU11020AB703BA0	Spring Terminal	LED White	Button Round	IP66 IP67 IP69K	3000000 Cycles	Off-Mom	22.3 mm	10000000 Cycles	Clear	10 A	Panel Mount Front	24 VAC/DC	500 V	Illuminated Standard	70 °C	-25 °C	SPST-NO	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 91.23
