89503 0021000

Active

Belden Inc.

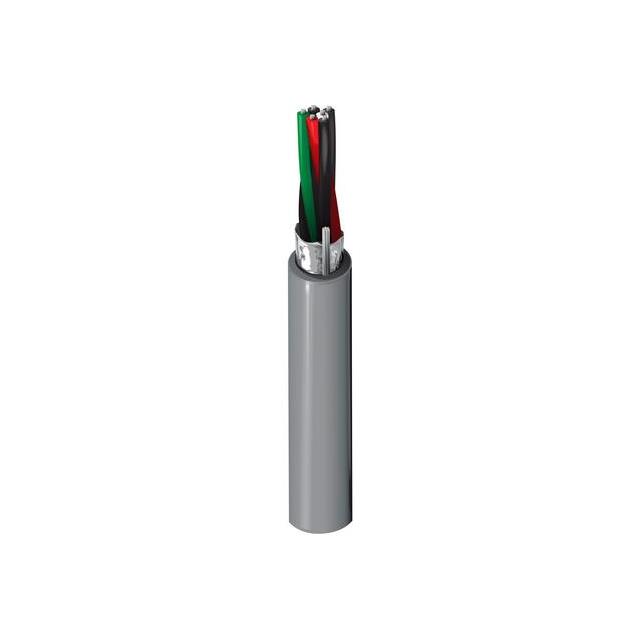

MULTI-PAIR 6COND 24AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	89503 0021000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.45 mm
Jacket (Insulation) Diameter [diameter]	0.175 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Cable Type	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Features	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Shield Type	Shield Material	Length [x]	Length [x]	Conductor Insulation	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket (Insulation) Material	Length	Length
Belden Inc. 89503 002500	Multi-Pair	6	4.45 mm	0.175 in	300 V	Drain Wire	Red	0.356 mm	0.014 in	24 AWG	100 %	32 AWG	7	UL Style CMP	Foil	Aluminum	500 '	152.4 m	Fluorinated Ethylene-Propylene (FEP)	Computer	200 °C	-70 °C	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum
Belden Inc. 89503 0021000	Multi-Pair	6	4.45 mm	0.175 in	300 V	Drain Wire	Red	0.356 mm	0.014 in	24 AWG	100 %	32 AWG	7	UL Style CMP	Foil	Aluminum			Fluorinated Ethylene-Propylene (FEP)	Computer	200 °C	-70 °C	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.89

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Red 24 AWG Foil 1000.0' (304.8m)
