7015-0990

Active

Amphenol SV Microwave

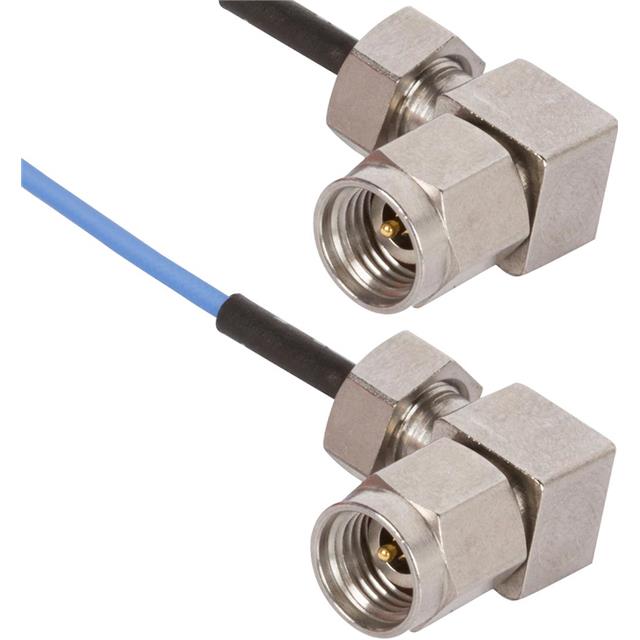

CBL ASSY 2.92MM PLUG TO PLUG 6"

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CBL ASSY 2.92MM PLUG TO PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Part	Overall Impedance	1st Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Frequency - Max [Max]	1st Contact Gender	2nd Contact Gender	1st Connector	2nd Connector	Color	2nd Connector Mounting Type	Cable Type	Features	Style	Style	1st Connector	Style [Min]	Style [Max]
Amphenol SV Microwave 7015-0993	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	12 "	304.8 mm	26.5 GHz	Female	Male	Right Angle SMP Jack	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded	SMP to 2.92mm
Amphenol SV Microwave 7015-0994	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	26.5 GHz	Female	Male	Right Angle SMP Jack	2.92 mm	Blue	Free Hanging (In-Line)	TFlex-405	Shielded	SMP to 2.92mm
Amphenol SV Microwave 7015-0996	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	20 GHz	Female	Male	Right Angle SMPM Jack	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded	SMPM	2.92 mm
Amphenol SV Microwave 7015-0990	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	40 GHz	Male	Male	Right Angle	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded			2.92 mm	2.92 mm	2.92 mm
Amphenol SV Microwave 7015-0998	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	18 GHz	Female	Male	Right Angle SMPM Jack	2.92 mm	Blue	Free Hanging (In-Line)	TFlex-405	Shielded	SMPM	2.92 mm
Amphenol SV Microwave 7015-0997	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	12 "	304.8 mm	20 GHz	Female	Male	Right Angle SMPM Jack	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded	SMPM	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 2.92mm to 2.92mm 0.047" Flexible Cable 6.000" (152.40mm)

Technical documentation and resources

No documents available
