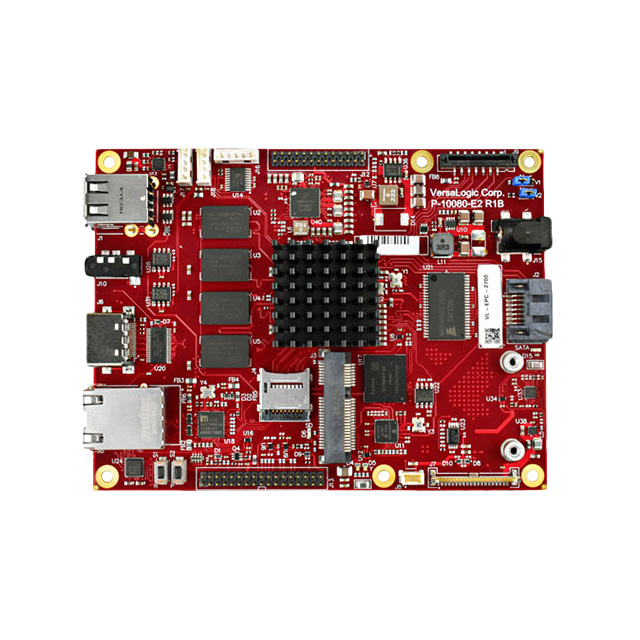

VL-EPC-2700-EDK-02A

Obsolete

VersaLogic Corporation

DEVELOPMENT BOARDS &AMP; KITS ROHS

Search across all available documentation for this part.

Obsolete

VersaLogic Corporation

DEVELOPMENT BOARDS &AMP; KITS ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

I.MX6 DUALLITE

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	RS-232 (422, 485)	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Cooling Type	RAM Capacity/Installed	Digital I/O Lines	Ethernet	Core Processor	Power (Watts)	Storage Interface	Video Outputs	Number of Cores	USB	Watchdog Timer
VersaLogic Corporation VL-EPC-2701-EBN-01
VersaLogic Corporation VL-EPC-2700-EDK-02A	124.46 mm	93.98 mm	3.7 in	4.9 in	1	85 °C	-40 °C	800 MHz	Heat Sink	2 GB	8	10 Mbps, 100 Mbps, 1000 Mbps	ARM Cortex-A9, i.MX6Quad	4.1 W	microSD, mSATA	HDMI, LVDS	4	USB 2.0 (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	N/A	1	$ 0.00

General part information

Single Board Computer 800MHz 4 Core 2GB/2GB RAM ARM Cortex-A9, i.MX6Quad
