M83513/04-C01N
ActiveITT Cannon, LLC
CONN MICRO-D SKT 21 POS 1.27MM CRIMP ST PANEL MOUNT 21 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
M83513/04-C01N
ActiveITT Cannon, LLC
CONN MICRO-D SKT 21 POS 1.27MM CRIMP ST PANEL MOUNT 21 TERMINAL 1 PORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/04-C01N |
|---|---|
| 1st Connector | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 21 |
| Shielding | Unshielded |
| Type | D-Type, Micro-D |
M83513/04 Series
| Part | Number of Positions | Type | Contact Finish | 2nd Connector | Color | Shielding | 1st Connector | Length [x] | Length [x] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | 9 | D-Type Micro-D | Gold | Individual Wire Leads | Individual Multiple | Unshielded | Female Sockets Receptacle | 457.2 mm | 1.5 ft | 50 µin | 1.27 µm |
ITT Cannon, LLC | 37 | D-Type Micro-D | Gold | Individual Wire Leads | Individual Multiple | Female Sockets Receptacle | 914.4 mm | 3 ft | 50 µin | 1.27 µm | |
ITT Cannon, LLC | 37 | D-Type Micro-D | Gold | Individual Wire Leads | Individual Multiple | Female Sockets Receptacle | 914.4 mm | 3 ft | 50 µin | 1.27 µm | |
ITT Cannon, LLC | 15 | DB15 | Gold | Individual Wire Leads | Individual Multiple | Female Sockets Receptacle | 914.4 mm | 3 ft | |||
ITT Cannon, LLC | 100 | D-Type Micro-D | Gold | Individual Wire Leads | Unshielded | Female Sockets Receptacle | 457.2 mm | 1.5 ft | 50 µin | 1.27 µm | |
ITT Cannon, LLC | 21 | D-Type Micro-D | Gold | Individual Wire Leads | Individual Multiple | Unshielded | Female Sockets Receptacle | 457.2 mm | 1.5 ft | 50 µin | 1.27 µm |
ITT Cannon, LLC | D-Type Micro-D | Gold | Individual Wire Leads | Unshielded | Female Sockets Receptacle | 457.2 mm | 1.5 ft | 50 µin | 1.27 µm | ||
ITT Cannon, LLC | 37 | D-Type Micro-D | Gold | Individual Wire Leads | Individual Multiple | Female Sockets Receptacle | 457.2 mm | 1.5 ft | 50 µin | 1.27 µm | |
ITT Cannon, LLC | 15 | DB15 | Gold | Individual Wire Leads | Individual Multiple | Female Sockets Receptacle | 914.4 mm | 3 ft | |||
ITT Cannon, LLC | 21 | D-Type Micro-D | Gold | Individual Wire Leads | Unshielded | Female Sockets Receptacle | 457.2 mm | 1.5 ft | 50 µin | 1.27 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M83513/04 Series

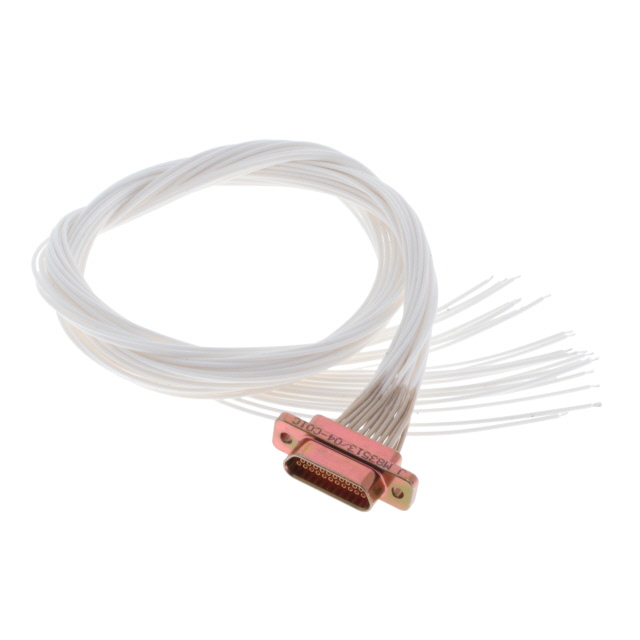

D-Sub Cable Assembly D-Type, Micro-D White, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded
Documents
Technical documentation and resources
No documents available
