M85049/1821Z06

Active

Amphenol Interconnect India

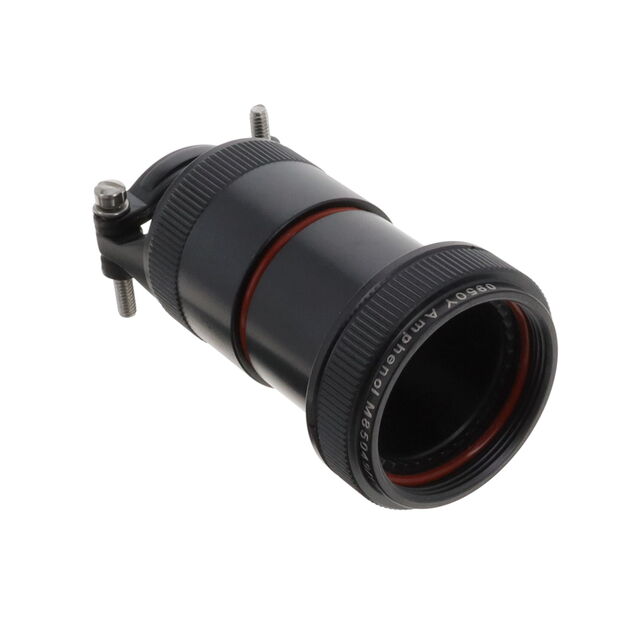

CONN BACKSHELL W/CLMP SZ21 G BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M85049/1821Z06

Active

Amphenol Interconnect India

CONN BACKSHELL W/CLMP SZ21 G BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.37
		10	$ 69.48

Description

General part information

M85049/18 Series

Black Connector Backshell, Cable Clamp 21, G

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/1821Z06	M85049/18 Series

Cable Exit	180 °	180 °
Cable Opening	-	3.3 - 28.7 mm
Cable Opening	-	0.13 - 1.13 in
Cable Opening	-	1.52 - 25.4 mm
Cable Opening	-	0.06 - 1 in
Cable Opening	-	0.06 - 1.13 in
Cable Opening	-	0.13 - 1.25 in
Cable Opening	-	3.3 - 31.75 mm
Cable Opening	-	1.52 - 28.7 mm
Cable Opening	-	19.05 mm
Cable Opening	-	25.4 mm
Cable Opening [custom]	19.05 mm, 16 mm	3.3 - 31.75 mm
Cable Opening [custom]	0.75 in, 0.63 in	0.13 - 1.25 in
Color	Black	Black, Olive Drab, Silver
Diameter - Outside [diameter]	39.37 mm	19.05 - 46.99 mm
Diameter - Outside [diameter]	1.55 in	0.75 - 1.85 in
Features	Clamp Screws	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy, Aluminum
Plating	Zinc Cobalt	Zinc Cobalt, Cadmium, Electroless Nickel
Shell Size - Insert	21	11 - 25
Shell Size - Insert	G	G, D, J, H, C, 17, E, F, B
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Type	Backshell, Cable Clamp	Backshell, Cable Clamp

M85049/18 Series

CONN BACKSHELL W/CLMP SZ21 G BLK

...

Part	Features	Material	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shielding	Cable Exit	Plating	Color	Type	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Amphenol Interconnect India M85049/1821Z06	Clamp Screws	Aluminum Alloy	Environment Resistant	16 mm, 19.05 mm	0.63 in, 0.75 in	39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV
Amphenol Interconnect India M85049/1821Z04B	Clamp Screws	Aluminum Alloy	Environment Resistant			39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV	12.7 mm	0.5 in	9.65 mm	0.38 in
Amphenol Interconnect India M85049/1815Z02B	Clamp Screws	Aluminum Alloy	Environment Resistant	3.3 mm, 6.35 mm	0.13 in, 0.25 in	29.21 mm	1.15 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	15	D	MIL-DTL-38999 Series III, IV
Amphenol Interconnect India M85049/1825Z09B	Clamp Screws	Aluminum Alloy	Environment Resistant			46.99 mm	1.85 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	25	J	MIL-DTL-38999 Series III, IV	28.7 mm	1.13 in	25.4 mm	1 in
Amphenol Interconnect India M85049/1825Z07	Clamp Screws	Aluminum Alloy	Environment Resistant			46.99 mm	1.85 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	25	J	MIL-DTL-38999 Series III, IV	22.35 mm	0.88 in	19.05 mm	0.75 in
Amphenol Interconnect India M85049/1821Z07	Clamp Screws	Aluminum Alloy	Environment Resistant			39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV
Amphenol Interconnect India M85049/1821Z08B	Clamp Screws	Aluminum Alloy	Environment Resistant			39.37 mm	1.55 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	21	G	MIL-DTL-38999 Series III, IV					0.88 in	1 in	25.4 mm	22.35 mm
Amphenol Interconnect India M85049/1825Z08	Clamp Screws	Aluminum Alloy	Environment Resistant			46.99 mm	1.85 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	25	J	MIL-DTL-38999 Series III, IV					0.88 in	1 in	25.4 mm	22.35 mm
Amphenol Interconnect India M85049/1823Z07	Clamp Screws	Aluminum Alloy	Environment Resistant			41.91 mm	1.65 "	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	23	H	MIL-DTL-38999 Series III, IV	22.35 mm	0.88 in	19.05 mm	0.75 in
Amphenol Interconnect India M85049/1813Z02	Clamp Screws	Aluminum Alloy	Environment Resistant	3.3 mm, 6.35 mm	0.13 in, 0.25 in	25.4 mm	1 in	Shielded	180 °	Zinc Cobalt	Black	Backshell, Cable Clamp	13	C	MIL-DTL-38999 Series III, IV
