SZ5-M1-W0-00-V3/W2-AA

Obsolete

Seoul Semiconductor

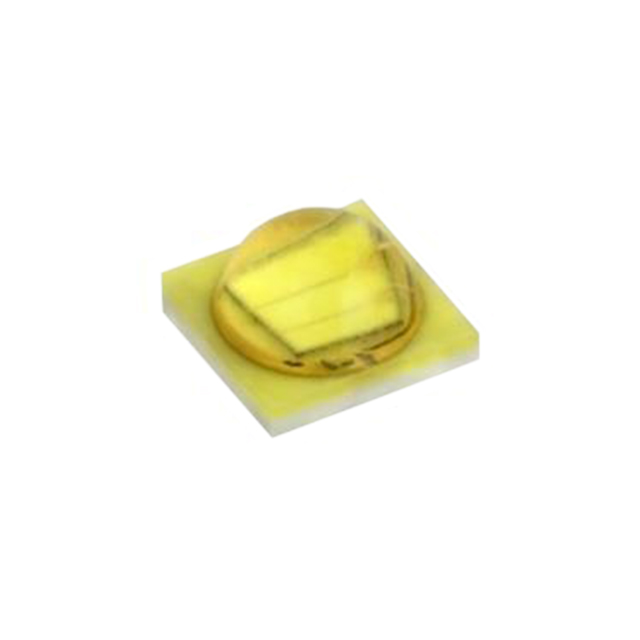

LED Z5-M1 COOL WHITE 5300K 2SMD

Search across all available documentation for this part.

Obsolete

Seoul Semiconductor

LED Z5-M1 COOL WHITE 5300K 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED Z5-M1 COOL WHITE 5300K 2SMD

Part	Color	Current - Max [Max]	CCT (K)	Viewing Angle	Mounting Type	Current - Test	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case
Seoul Semiconductor SZ5-M1-W0-00-V3/W2-AA	Cool, White	1.5 A	5300 K	118 °	Surface Mount	350 mA	70	155 lm	2-SMD	3.5 mm	3.5 mm	0.138 in	0.138 in	2-SMD, No Lead Exposed Pad	150 lm/W	2.95 V
Seoul Semiconductor SZ5-M1-WW-C8-U3V3-TSR	Warm, White	1.5 A		118 °	Surface Mount	350 mA	80	130 lm	SMD	3.5 mm	3.5 mm	0.138 in	0.138 in	1414	126 lm/W	2.95 V	3535 Metric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Z5-M1 White, Cool 5300K 2.95V 350mA 118° 2-SMD, No Lead Exposed Pad

Technical documentation and resources

No documents available
