CT2215-4
ActiveCal Test Electronics

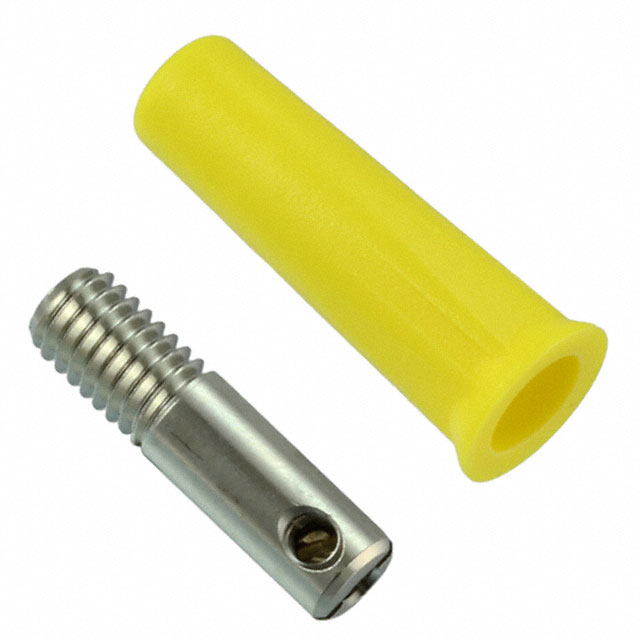

CONN BANANA JACK SCREW YELLOW
Deep-Dive with AI
Search across all available documentation for this part.
CT2215-4
ActiveCal Test Electronics
CONN BANANA JACK SCREW YELLOW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2215-4 |
|---|---|
| Body Material | Nylon, Polyamide (PA) |
| Color | Yellow |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Screw |
| Type | Banana Jack |
| Wire Gauge | 12 AWG |
CT2215 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Gender | Type | Wire Gauge | Contact Material | Contact Finish | Insulation | Plug/Mating Plug Diameter | Termination | Body Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cal Test Electronics | -20 C | 80 C | Green | Female | Banana Jack | 12 AWG | Brass | Nickel | Fully Insulated | Standard Banana | Screw | Nylon Polyamide (PA) | Free Hanging (In-Line) |
Cal Test Electronics | -20 C | 80 C | Yellow | Female | Banana Jack | 12 AWG | Brass | Nickel | Fully Insulated | Standard Banana | Screw | Nylon Polyamide (PA) | Free Hanging (In-Line) |
Cal Test Electronics | -20 C | 80 C | Blue | Female | Banana Jack | 12 AWG | Brass | Nickel | Fully Insulated | Standard Banana | Screw | Nylon Polyamide (PA) | Free Hanging (In-Line) |
Cal Test Electronics | -20 C | 80 C | Black | Female | Banana Jack | 12 AWG | Brass | Nickel | Fully Insulated | Standard Banana | Screw | Nylon Polyamide (PA) | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
Description
General part information
CT2215 Series
Banana Jack Connector Standard Banana Screw Yellow
Documents
Technical documentation and resources
No documents available
