TCN0.50SV

Active

Techflex

SLEEVING 0.5" ID 4' SILVER

Search across all available documentation for this part.

Active

Techflex

SLEEVING 0.5" ID 4' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	TCN0.50SV

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside [diameter]	0.5 in
Diameter - Inside [diameter]	12.7 mm
Diameter - Outside [diameter]	14.99 mm
Diameter - Outside [diameter]	0.59 in
Features	Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant, Heat Resistant
Length [x]	1.22 m
Length [x]	4 ft
Liquid Protection	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	255 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving, Insulated
Type Attributes	Convoluted - Braided
Wall Thickness	1.14 mm
Wall Thickness	0.045 in

SLEEVING 0.5" ID 4' SILVER

Part	Features	Material Flammability Rating	Type	Heat Protection	Type Attributes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Liquid Protection	Wall Thickness	Wall Thickness	Length [x]	Length [x]	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Abrasion Protection	Material
Techflex TCN0.50SV	Chemical Resistant, Clean Cut	Non Flammable	Sleeving, Insulated	Flame Retardant, Heat Resistant	Convoluted - Braided	14.99 mm	0.59 in	-60 °C	255 °C	Gasoline Resistant	1.14 mm	0.045 in	1.22 m	4 ft	Silver	0.5 in	12.7 mm	Abrasion Resistant	Aluminized, Fiberglass, Halogen Free

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

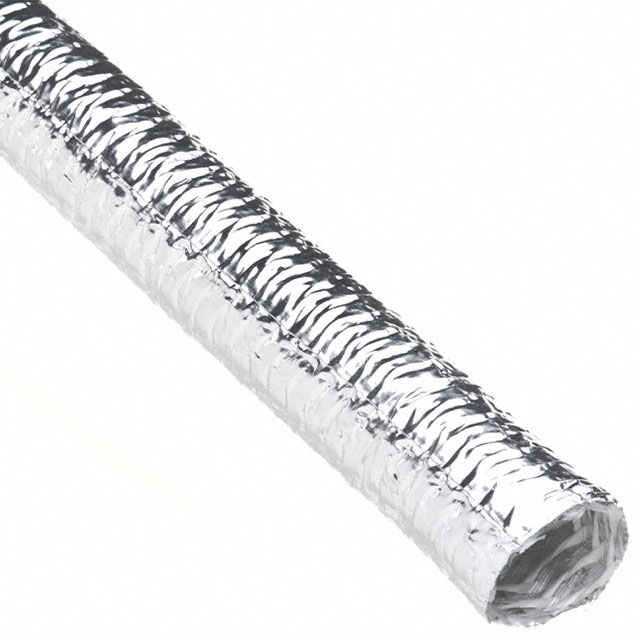

Silver Fiberglass, Aluminized, Halogen Free Convoluted - Braided Sleeving, Insulated 0.500" (12.70mm) 4.00' (1.22m)
