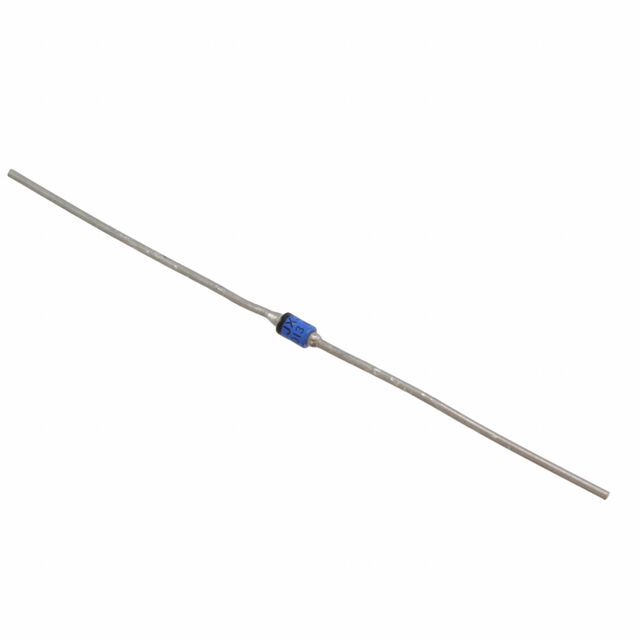

JANTX1N3957
ActiveMicrochip Technology
DIODE SWITCHING 1KV 1A 2-PIN CASE A
Deep-Dive with AI
Search across all available documentation for this part.
JANTX1N3957
ActiveMicrochip Technology
DIODE SWITCHING 1KV 1A 2-PIN CASE A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JANTX1N3957 | 1N3957 Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 1 A | 1 A |
| Current - Reverse Leakage @ Vr | 1 µA | 1 µA |
| Grade | Military | Military |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C | -65 C |
| Package / Case | A, Axial | A, Axial |
| Qualification | MIL-PRF-19500/228 | MIL-PRF-19500/228 |
| Speed | Standard Recovery >500ns | Standard Recovery >500ns |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | A, Axial | A, Axial |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 120 | $ 5.73 | |
1N3957 Series
DIODE SWITCHING 1KV 1A 2-PIN CASE A
| Part | Mounting Type | Voltage - Forward (Vf) (Max) @ If | Voltage - DC Reverse (Vr) (Max) [Max] | Technology | Package / Case | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Speed | Speed | Grade | Current - Average Rectified (Io) | Current - Reverse Leakage @ Vr | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JANTX1N3957 | Through Hole | 1.1 V | 1000 V | Standard | A, Axial | 175 ░C | -65 C | Standard Recovery >500ns | 200 mA | Military | 1 A | 1 µA | MIL-PRF-19500/228 | A, Axial |
Microchip Technology JANTX1N3957 |
Description
General part information
1N3957 Series
Working Peak Reverse Voltage 1000 V
Voidless hermetically sealed glass package
Internal "Category I" Metallurgical bonds
