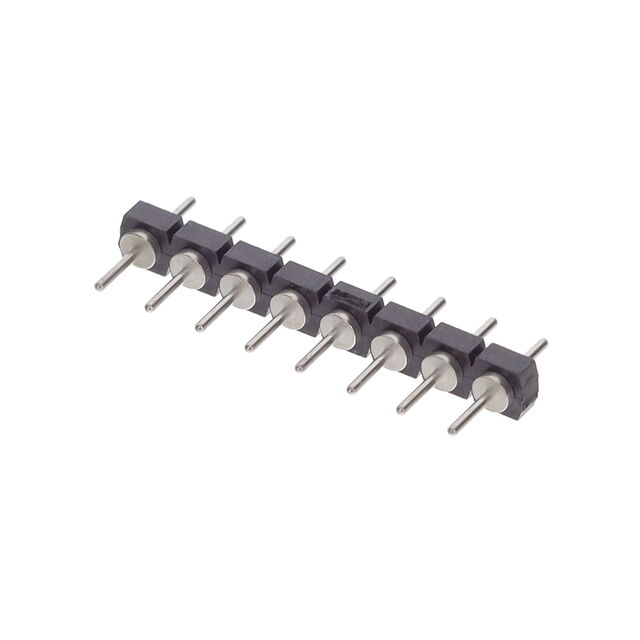

BBL-108-T-E - BBL-108-T-E

BBL-108-T-E

Unknown
Samtec Inc.

CONN UNSHROUDED HEADER HDR 8 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBBx, BDL, BHS Series DatasheetDatasheet+2
BBL-108-T-E - BBL-108-T-E

BBL-108-T-E

Unknown
Samtec Inc.

CONN UNSHROUDED HEADER HDR 8 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

DocumentsBBx, BDL, BHS Series DatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationBBL-108-T-E
Connector TypeHeader
Contact Finish - PostNickel
Contact Finish Thickness - Post1.27 µm
Contact Finish Thickness - Post50 µin
Contact Length - Post [x]3.18 mm
Contact Length - Post [x]0.125 in
Contact ShapeCircular
Contact TypeMale Pin
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.07 in
Insulation Height1.78 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions8
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Overall Contact Length7.62 mm
Overall Contact Length0.3 in
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
ShroudingUnshrouded
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 2.03
50$ 1.58
DigikeyTube 1$ 2.80
10$ 2.14
100$ 1.65
500$ 1.39
1000$ 1.29
5000$ 1.11

Description

General part information

BBL-108 Series

Connector Header Through Hole 8 position 0.100" (2.54mm)
