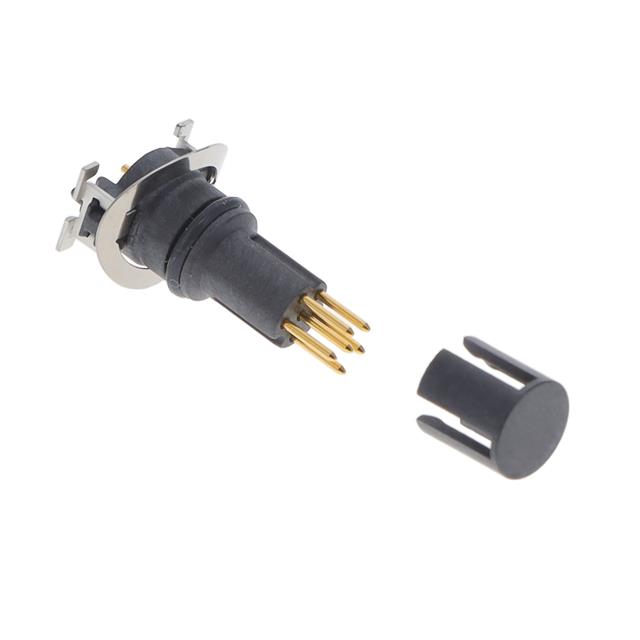

M8S-06PMMT-EE0001
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M8, MALE, 6 POSITIONS, PCB PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M8S-06PMMT-EE0001
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M8, MALE, 6 POSITIONS, PCB PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M8S-06PMMT-EE0001 |
|---|---|
| Color | Black |
| Connector Type | Insert, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Features | Ground, Requires Shell, Insert Only, Board Guide |
| Insert Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size - Insert | M8-6 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.43 | |
| 10 | $ 4.93 | |||
| 25 | $ 4.67 | |||
| 50 | $ 4.56 | |||
| Digi-Reel® | 1 | $ 6.35 | ||
| 10 | $ 4.86 | |||
| 25 | $ 4.38 | |||
| 50 | $ 4.06 | |||
| Tape & Reel (TR) | 100 | $ 4.34 | ||
| 300 | $ 3.80 | |||
| 500 | $ 3.69 | |||
| 1000 | $ 3.15 | |||
| 2500 | $ 2.93 | |||
Description
General part information
M8S-06PMMT Series
6 Position Circular Connector Insert, Male Pins Solder
