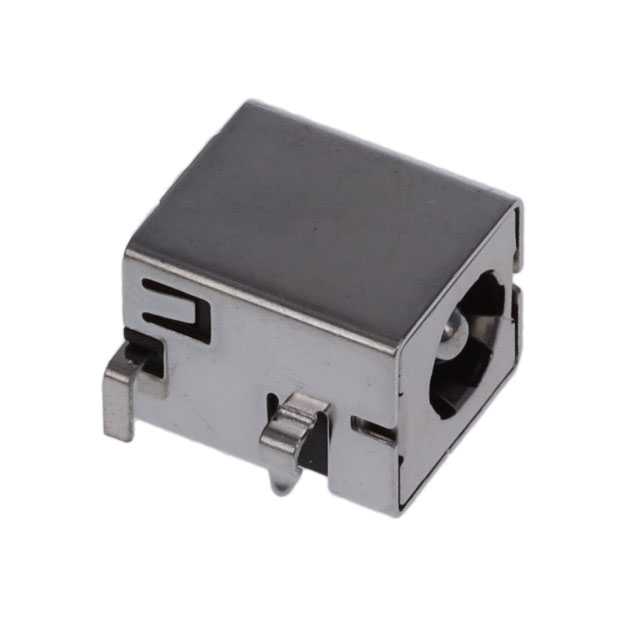

Specification	JACK-C-SMT-10A-RA(R)

Actual Diameter (ID)	2 mm
Actual Diameter (Outer)	0.079 in
Body Color	Silver
Connector Type	Jack
Contact Material	Brass
Contact Material - Plating	Gold
Current Rating	10 A
Gender	Male
Housing Material	Iron
Industry Recognized Mating Diameter (ID)	2.1 mm
Industry Recognized Mating Diameter (OD)	5.5 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Board Cutout, Right Angle
Number of Conductors	4 Conductors
Number of Contacts	5 Contacts
Shielding	Shielded
Termination	Kinked Pin, Solder
Voltage - Rated	50 V

JACK-C Series

Part	Number of Conductors	Number of Contacts	Industry Recognized Mating Diameter (OD)	Industry Recognized Mating Diameter (ID)	Gender	Shielding	Voltage - Rated	Actual Diameter (Outer)	Actual Diameter (ID)	Connector Type	Mounting Type	Material Flammability Rating	Internal Switch(s)	Termination	Current Rating	Body Color	Contact Material - Plating	Contact Material	Housing Material
GlobTek, Inc. JACK-C-SMT-10A-RA(R)	4 Conductors	5 Contacts	5.5 mm	2.1 mm	Male	Shielded	50 V	0.079 in	2 mm	Jack	Board Cutout Right Angle Through Hole	UL94 V-0	Normally Closed Single Switch	Kinked Pin Solder	10 A	Silver	Gold	Brass	Iron
