387-060-540-201
ActiveEDAC Inc.

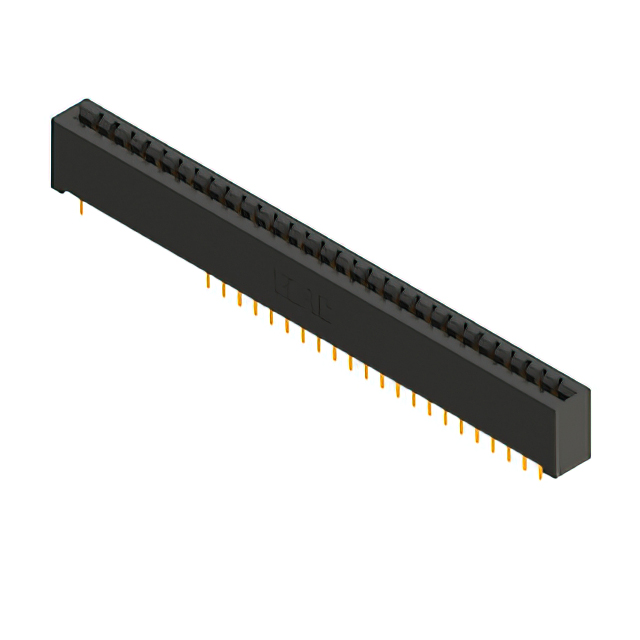

CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-060-540-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-060-540-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-060 Series
...
| Part | Termination Rows | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Color | Material - Insulation | Gender | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Type | Read Out | Number of Positions | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole Right Angle | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Copper Alloy | |||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Board Edge Straddle Mount | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | |||||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Copper Alloy | |||||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole Right Angle | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | ||||||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole Right Angle | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | |||||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | |||||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | |||||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Board Edge Straddle Mount | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Copper Alloy | Card Extender | ||||
EDAC Inc. | 2 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Black | Polyester Thermoplastic | Female | 30 | Gold | Cantilever | Dual | 60 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
