513945 0101000

Active

Belden Inc.

RG-11/U TYPE 75 OHM COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-11/U TYPE 75 OHM COAX

Technical Specifications

Parameters and characteristics for this part

Specification	513945 0101000

Cable Group	RG-11
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.28 in
Dielectric Diameter [diameter]	7.11 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
VoP, Velocity of Propagation	84
Wire Gauge	13.5 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	VoP, Velocity of Propagation	Conductor Strand	Jacket (Insulation) Material	Dielectric Material	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Wire Gauge	Jacket Color	Shield Coverage	Length	Length	Impedance
Belden Inc. 513945 0101000	-30 ░C	75 ░C	Copper Bare	84	Solid	Poly-Vinyl Chloride (PVC)	Foam Polyethylene (FPE)	RG-11	0.28 in	7.11 mm	Coaxial	Braid	10.29 mm	0.405 in	Copper Bare	13.5 AWG	Black	95 %	304.8 m	1000 ft	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1315.10

General part information

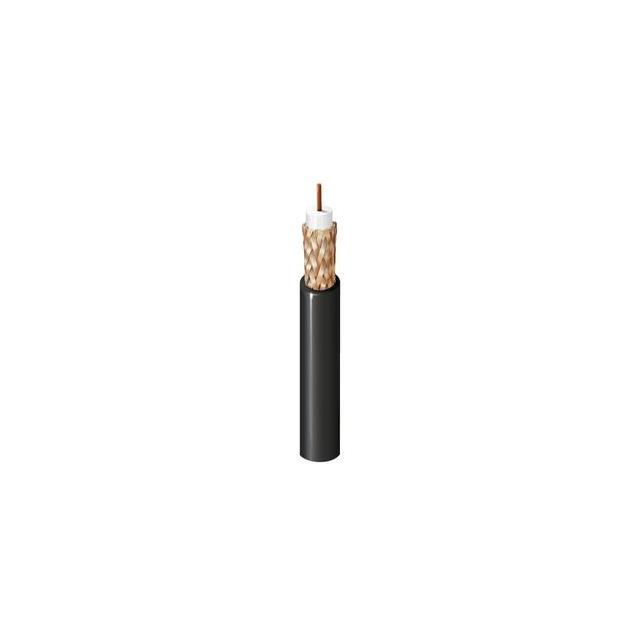

Coaxial Cable 14 AWG RG-11 1000.0' (304.80m) 75 Ohms
