SMLJ48CA-Q

Active

Bourns Inc.

DIO TVS VWM 48V 3KW BIDIR SMC AEC-Q

Search across all available documentation for this part.

Active

Bourns Inc.

DIO TVS VWM 48V 3KW BIDIR SMC AEC-Q

Technical Specifications

Parameters and characteristics for this part

Specification	SMLJ48CA-Q

Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	38.8 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

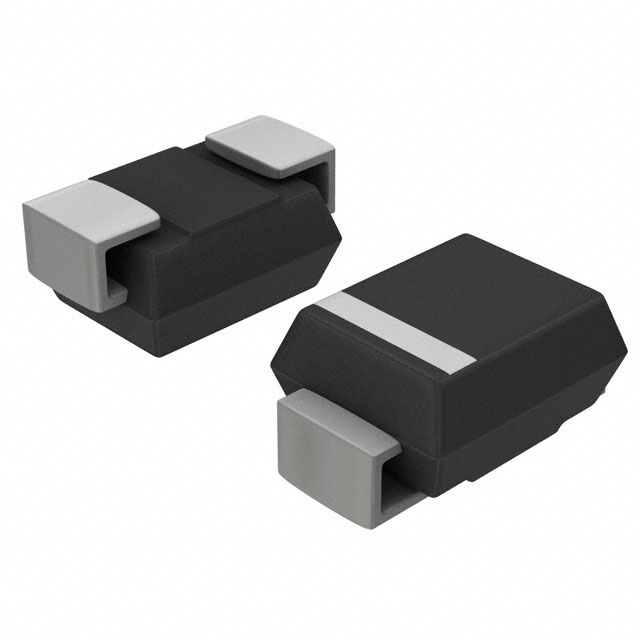

Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Voltage - Breakdown (Min) [Min]	53.3 V
Voltage - Clamping (Max) @ Ipp [Max]	77.4 V
Voltage - Reverse Standoff (Typ)	48 V

Part	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection	Power - Peak Pulse	Power - Peak Pulse	Type	Supplier Device Package	Unidirectional Channels [custom]	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Qualification	Grade	Voltage - Reverse Standoff (Typ)	Bidirectional Channels [custom]
Bourns Inc. SMLJ48A-Q	38.8 A	53.3 V	-55 °C	150 °C		3000 W	3 kW	Zener	DO-214AB (SMC)	1	DO-214AB SMC	77.4 V	Surface Mount	AEC-Q101	Automotive	48 V
Bourns Inc. SMLJ48CA-Q	38.8 A	53.3 V	-55 °C	150 °C		3000 W	3 kW	Zener	DO-214AB (SMC)		DO-214AB SMC	77.4 V	Surface Mount	AEC-Q101	Automotive	48 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

77.4V Clamp 38.8A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
