1-1355211-2

Active

TE Connectivity AMP Connectors

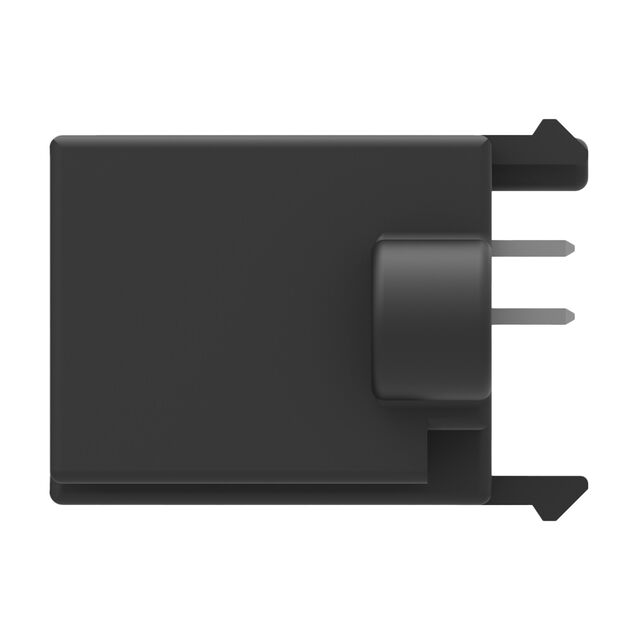

PIN HEADER 8 POS MQS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

PIN HEADER 8 POS MQS

Technical Specifications

Parameters and characteristics for this part

Specification	1-1355211-2

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Mounting Flange
Insulation Color	Black
Insulation Height	0.65 in
Insulation Height	16.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating	0.105 in
Row Spacing - Mating	2.66 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

PIN HEADER 8 POS MQS

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Features	Number of Positions Loaded	Fastening Type	Contact Material	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Shrouding	Contact Type	Termination	Number of Rows	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Insulation Material	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height
TE Connectivity AMP Connectors 1-1355211-2	0.1 in	2.54 mm	8	Board to Cable/Wire	Header	-40 °C	120 °C	Square	Mounting Flange	All	Push-Pull	Copper Alloy	UL94 V-0	0.122 "	3.1 mm	Shrouded - 4 Wall	Male Pin	Solder	2	Black	0.105 in	2.66 mm	50 V	Polybutylene Terephthalate (PBT), Glass Filled	Tin	Through Hole	0.65 in	16.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.100" (2.54mm)
