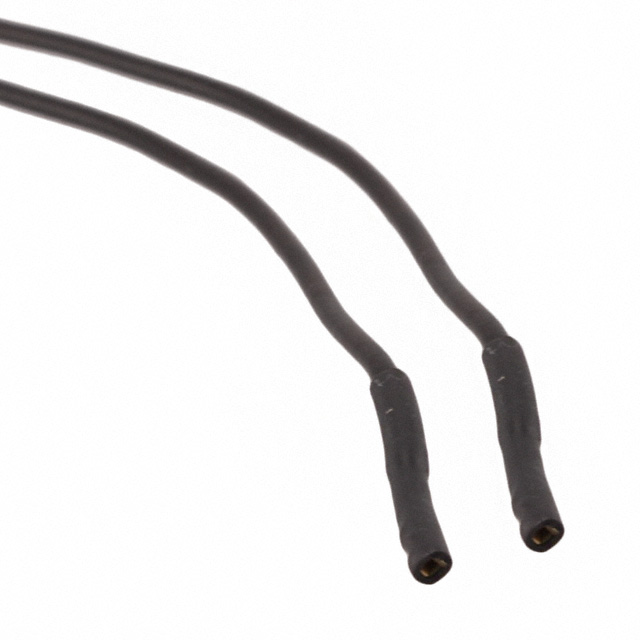

9110-12 BLK - Patchcord

9110-12 BLK

Active
E-Z-Hook

TEST LEAD SOCKET TO SOCKET 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
9110-12 BLK - Patchcord

9110-12 BLK

Active
E-Z-Hook

TEST LEAD SOCKET TO SOCKET 12"

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification9110-12 BLK
1st Connector0.025 in
1st ConnectorSocket, Square
1st Connector0.64 mm
2nd ConnectorSocket, Square
2nd Connector0.64 mm
2nd Connector0.025 in
Cable Length12 in
Cable Length304.8 mm
ConfigurationSocket to Socket
Contents1 Lead, Black
Current Rating (Amps)2.5 A
Material - InsulationPoly-Vinyl Chloride (PVC)
Temperature Range105 °C
Temperature Range221 °F
Voltage - Rated1 kV
Voltage - Rated1000 V
Wire Gauge22 AWG

9110-12 Series

TEST LEAD SOCKET TO SOCKET 12"

PartContentsCable LengthCable LengthVoltage - RatedVoltage - RatedWire GaugeConfigurationMaterial - InsulationCurrent Rating (Amps)2nd Connector2nd Connector2nd ConnectorTemperature RangeTemperature Range1st Connector1st Connector1st Connector
E-Z-Hook
9110-12 BLK
1 Lead, Black
12 in
304.8 mm
1 kV
1000 V
22 AWG
Socket to Socket
Poly-Vinyl Chloride (PVC)
2.5 A
Socket, Square
0.64 mm
0.025 in
105 °C
221 °F
0.025 in
Socket, Square
0.64 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.74
5$ 4.53
10$ 4.44
25$ 4.32
50$ 4.24
100$ 4.15
250$ 4.05
500$ 3.97
1000$ 3.89

Description

General part information

9110-12 Series

12.0" (304.80mm) Socket, Square, 0.025" (0.64mm) To Socket, Square, 0.025" (0.64mm) Test Lead 1000VDC (1kV) 1 Lead, Black
