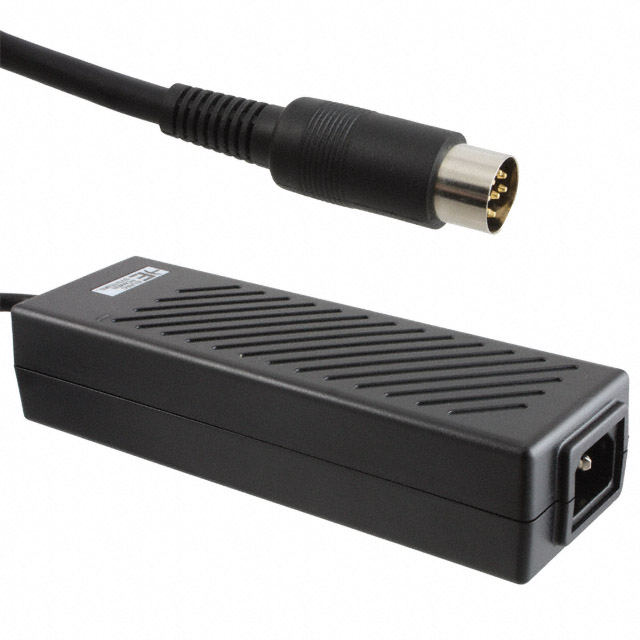

MWC100012A-12A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 100W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 100W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC DESKTOP ADAPTER 12V 100W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output	Input Type	Cord Length	Cord Length	Input Connector	Weight	Weight	No Load Power Consumption	Form	Output Connector	Output Connector	Region Utilized
Inventus Power MWC100012A-12A	2.27 in	180.2 mm	1.52 in	7.09 in	57.5 mm	38.6 mm	Medical	100 W	8.3 A	Level V	60 °C	0 °C	CB, CE, cTUVus	12 V	Cord	1.22 m	48 in	IEC 320-C14	725.7 g	1.6 lbs	500 mW	Desktop (Class I)	8 Pin	DIN	International
Inventus Power MWC100012B-12A	2.27 in	180.1 mm	1.52 in	7.09 in	57.7 mm	38.6 mm	Medical	100 W	8.3 A	Level V	60 °C	0 °C	CE, cTUVus, cULus	12 V	Cord	1.22 m	48 in	IEC 320-C14			500 mW	Desktop (Class I)	8 Pin	DIN	International

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.61

General part information

12V 100 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
