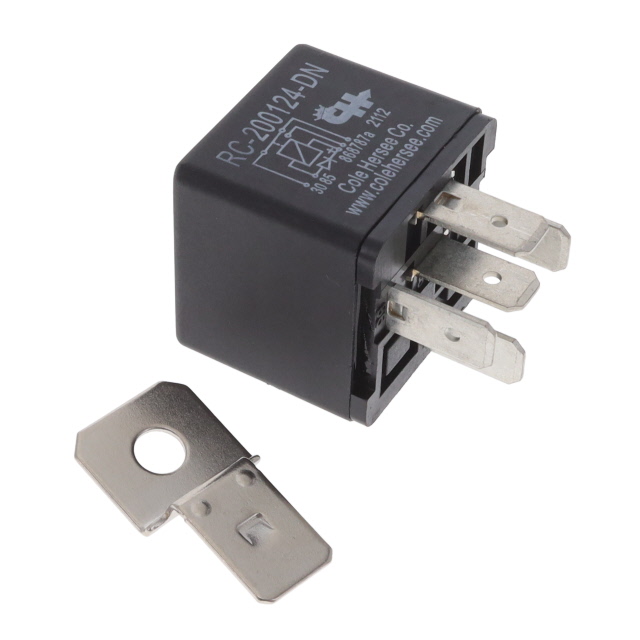

RC-200124-DN

Active

Littelfuse/Commercial Vehicle Products

RELAY GEN PURPOSE SPDT 20A 24V

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

RELAY GEN PURPOSE SPDT 20A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Chassis Mount

Technical documentation and resources

Part	Contact Material	Relay Type	Mounting Type	Coil Voltage	Contact Form	Switching Voltage	Must Release Voltage	Load - Max Switching	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Contact Rating (Current)	Features
Littelfuse/Commercial Vehicle Products RC-200124-NN	Silver Alloy	General Purpose	Chassis Mount	24 VDC	SPDT (1 Form C)	32 VDC	2.4 VDC	640 W	Plug In	85 °C	-40 °C	Non Latching	20 A
Littelfuse/Commercial Vehicle Products RC-200124-DN	Silver Alloy	General Purpose	Chassis Mount	24 VDC	SPDT (1 Form C)	32 VDC		640 W	Plug In	85 °C	-40 °C	Non Latching	20 A	Diode
