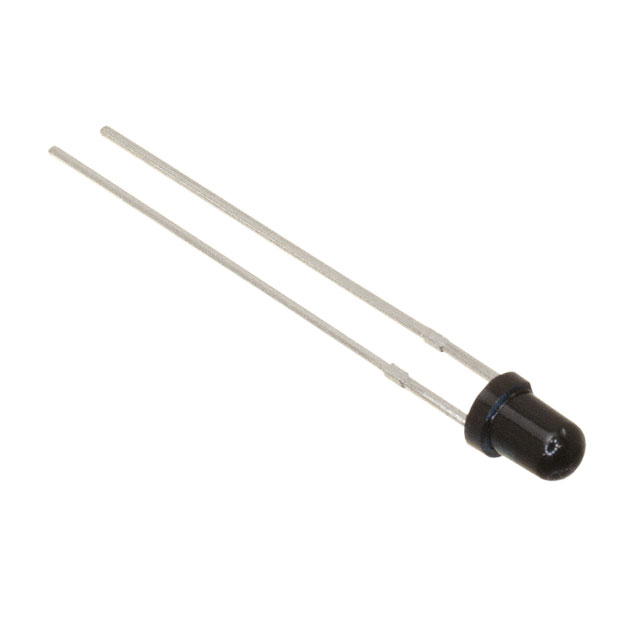

INL-3ANPD80

Active

Inolux

SENSOR PHOTODIODE 850NM RADIAL

Search across all available documentation for this part.

Active

Inolux

SENSOR PHOTODIODE 850NM RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

THROUGH HOLE / STANDARD 3MM T1 /

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Viewing Angle [custom]	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Radiant Intensity (Ie) Min @ If	Wavelength	Type	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Response Time	Color - Enhanced	Diode Type	Viewing Angle	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Lens Style	Lens Transparency	Wavelength - Dominant [custom]	Size / Dimension [diameter]	Supplier Device Package	Configuration	Millicandela Rating	Current - Test	Lens Color	Lens Size	Lens Size	Wavelength - Peak	Height (Max) [Max]	Color
Inolux INL-3ABCMIR40	-40 °C	80 C	Top View	1.3 V	100 mA	40 °	Radial	8 mW/sr	20 mA	880 nm	Infrared (IR)	Through Hole
Inolux INL-3ANPD80	-40 °C	80 C					Radial			850 nm		Through Hole	170 V	45 µs	Infrared (NIR), Red	PIN	80 °	1100 nm	400 nm
Inolux INL-3AA30				2 V			Radial					Through Hole					30 °			Round with Domed Top	Clear	610 nm	3.05 mm	3 mm	Standard	460 mcd	20 mA	Colorless	3 mm	T-1	605 nm	0.2 in	Amber
Inolux INL-3AIR30	-40 °C	80 C	Top View	1.4 V	100 mA		Radial	6 mW/sr		850 nm	Infrared (IR)	Through Hole					30 °
Inolux INL-3AHIR15	-40 °C	80 C	Top View		100 mA		Radial	6 mW/sr		940 nm	Infrared (IR)	Through Hole					15 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 850nm 45µs 80° Radial
