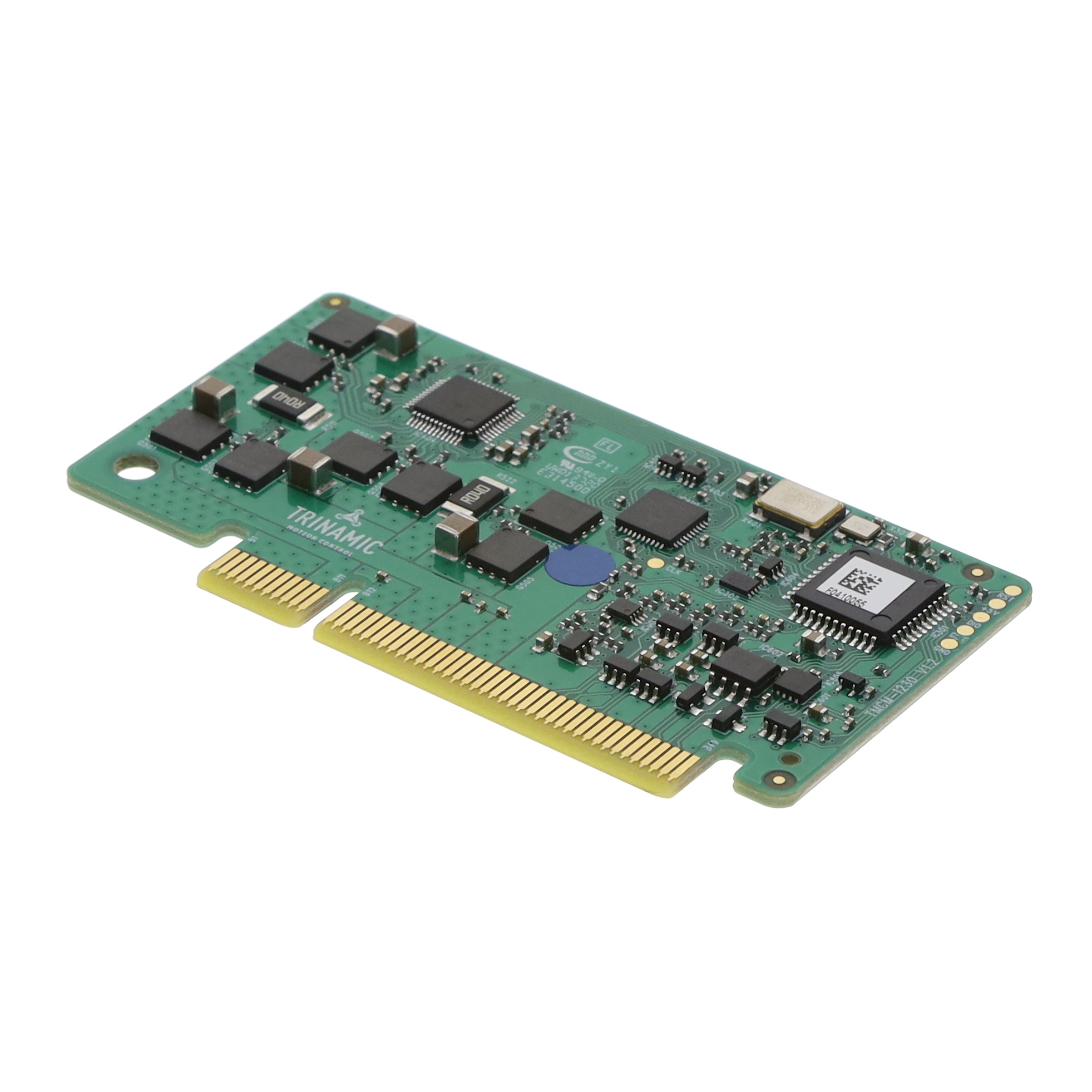

TMCM-1230-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 5A 10-30V
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1230-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 5A 10-30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1230-TMCL | TMCM-1230 Series |
|---|---|---|
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 5 A | 5 A |
| Interface | Step / Direction, RS-485 | Step / Direction, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Board | Board |
| Voltage - Load [Max] | 30 V | 30 V |
| Voltage - Load [Min] | 10 V | 10 V |
| Voltage - Supply | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 142.05 | |
TMCM-1230 Series
STEPPER DRIVER 5A 10-30V
| Part | Current - Output | Interface | Voltage - Load [Min] | Voltage - Load [Max] | Voltage - Supply | Mounting Type | Control / Drive Type | Type | Motor Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1230-TMCL | 5 A | RS-485, Step / Direction | 10 V | 30 V | 5 V | Chassis Mount | Bipolar, Stepper | Board | Stepper | -30 ░C | 60 °C |
Analog Devices Inc./Maxim Integrated TMCM-1230-CANOPEN | 5 A | RS-485, Step / Direction | 10 V | 30 V | 5 V | Chassis Mount | Bipolar, Stepper | Board | Stepper | -30 ░C | 60 °C |
Description
General part information
TMCM-1230 Series
Stepper, Bipolar 5VDC Supply 5A 10 ~ 30V Load
Documents
Technical documentation and resources
No documents available
