DPC817W-D-TU

Active

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Active

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	DPC817W-D-TU

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max) [Max]	600 %
Current Transfer Ratio (Min) [Min]	300 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm

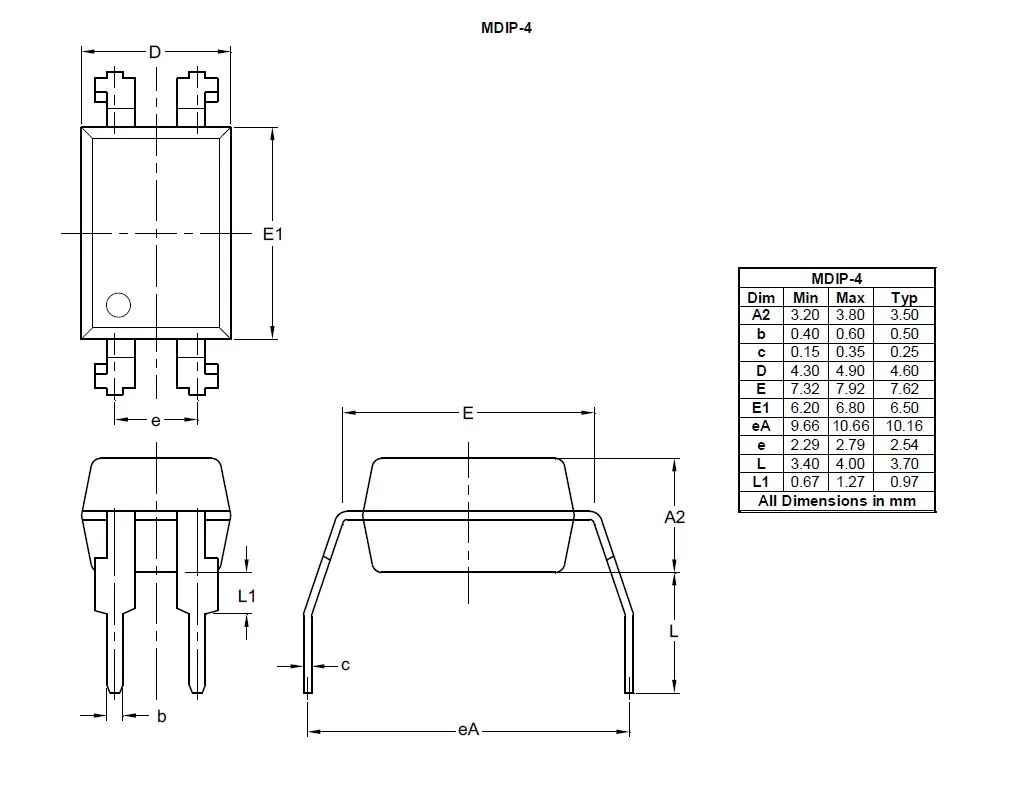

Package / Case	4-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ)	18 µs
Rise / Fall Time (Typ) [Max]	18 µs
Supplier Device Package	4-DIP
Vce Saturation (Max)	200 mV
Voltage - Forward (Vf) (Typ)	1.25 V
Voltage - Output (Max) [Max]	35 V

NRND = Not Recommended for New Design

Part	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Min) [Min]	Current - Output / Channel	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Number of Channels	Voltage - Output (Max) [Max]	Vce Saturation (Max)	Input Type	Rise / Fall Time (Typ) [Max]	Rise / Fall Time (Typ)	Mounting Type	Package / Case	Output Type
Diodes Inc DPC817W-D-TU-V	600 %	300 %	50 mA	-55 °C	110 °C	60 mA	4-DIP	1.25 V	1	35 V	200 mV	DC	18 µs	18 µs	Through Hole	4-DIP (0.300" 7.62mm)	1.81 mOhm
Diodes Inc DPC817W-D-TU	600 %	300 %	50 mA	-55 °C	110 °C	60 mA	4-DIP	1.25 V	1	35 V	200 mV	DC	18 µs	18 µs	Through Hole	4-DIP (0.300" 7.62mm)	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NRND = Not Recommended for New Design

Technical documentation and resources
