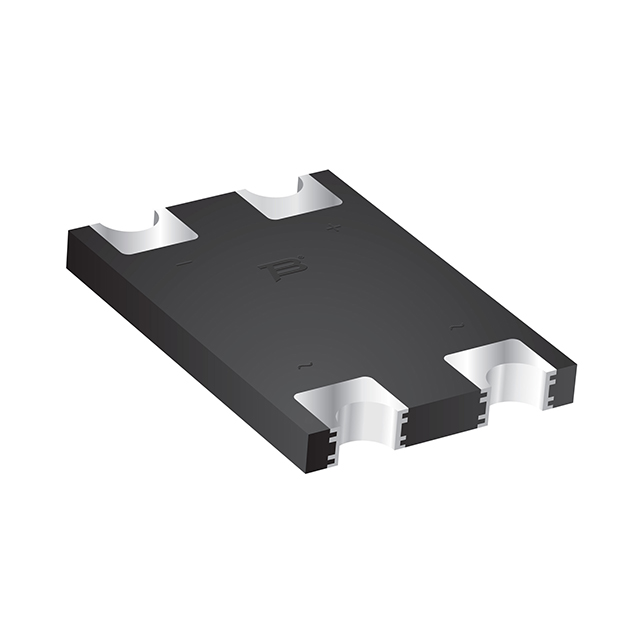

CD-HD2006

Active

Bourns Inc.

BRIDGE RECT 1PHASE 60V 2A

Search across all available documentation for this part.

Active

Bourns Inc.

BRIDGE RECT 1PHASE 60V 2A

Technical Specifications

Parameters and characteristics for this part

Specification	CD-HD2006

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	200 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	Concave Terminals, Chip
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	700 mV
Voltage - Peak Reverse (Max) [Max]	60 V

Part	Diode Type	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max) [Max]	Voltage - Peak Reverse (Max)
Bourns Inc. CD-HD201	Single Phase	Surface Mount	850 mV	Schottky	2 A	Chip Concave Terminals	100 µA	125 ¯C	-55 °C	100 V
Bourns Inc. CD-HD006	Single Phase	Surface Mount	700 mV	Schottky	1 A	Chip Concave Terminals	200 µA	125 ¯C	-55 °C	60 V
Bourns Inc. CD-HD201L	Single Phase	Surface Mount	850 mV	Schottky	2 A	Chip Concave Terminals	100 µA	125 ¯C	-55 °C	100 V
Bourns Inc. CD-HD01	Single Phase	Surface Mount	850 mV	Schottky	1 A	Chip Concave Terminals	200 µA	125 ¯C	-55 °C	100 V
Bourns Inc. CD-HD2006	Single Phase	Surface Mount	700 mV	Schottky	2 A	Chip Concave Terminals	200 µA	125 ¯C	-55 °C	60 V
Bourns Inc. CD-HD2004	Single Phase	Surface Mount	500 mV	Schottky	2 A	Chip Concave Terminals	200 µA	125 ¯C	-55 °C		40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Schottky 60 V Surface Mount
