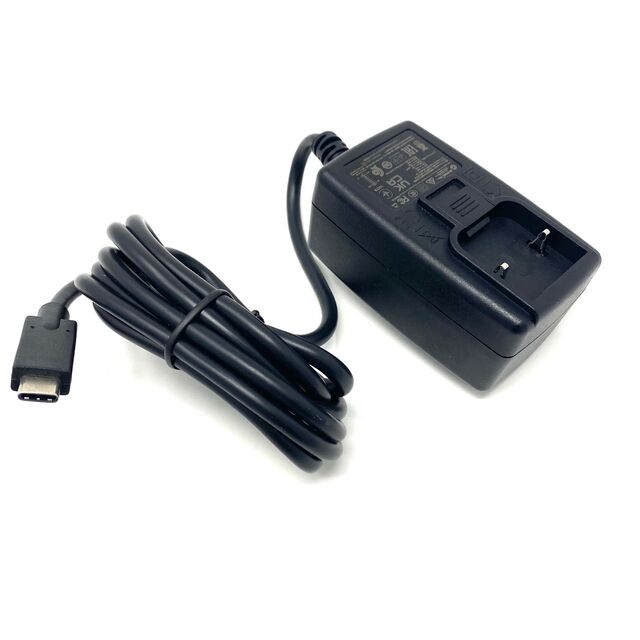

WR9QZ1800USBCIM(R6B)

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPT 5V-20V 36W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPT 5V-20V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QZ1800USBCIM(R6B)

Applications	ITE (Commercial), Medical
Approval Agency	CCC, EAC, cETLus, FCC, RCM, PSE, LPS, UKRSepro, VCCI, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max)	2.38 A, 2.4 A, 3 A, 1.8 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	USB C Receptacle
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	60950-1, 60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5.8 V, 20 V, 12 V, 15.1 V, 5 V, 9 V, 15 VDC

AC/DC WALL MNT ADAPT 5V-20V 36W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Output Connector	Input Connector	Voltage - Output	Standard Number	No Load Power Consumption [Max]	Cord Length	Cord Length	Region Utilized	Form	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Current - Output (Max)	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency
GlobTek, Inc. WR9QZ1800USBCIM(R6B)	-10 °C	40 °C	CoC Tier 2, Level VI	USB C Receptacle	Multi-Blade	5 V, 5.8 V, 9 V, 12 V, 15 VDC, 15.1 V, 20 V	60601-1, 60950-1, 62368-1	75 mW	1.5 m	59 in	International	Wall Mount (Class II)	36 W	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Multi-Blade (Sold Separately)	1.8 A, 2.38 A, 2.4 A, 3 A	ITE (Commercial), Medical	90 VAC	264 VAC	CB, CCC, cETLus, EAC, FCC, LPS, PSE, RCM, UKRSepro, VCCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V, 5.8V, 9V, 12V, 15V, 15.1V, 20V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
