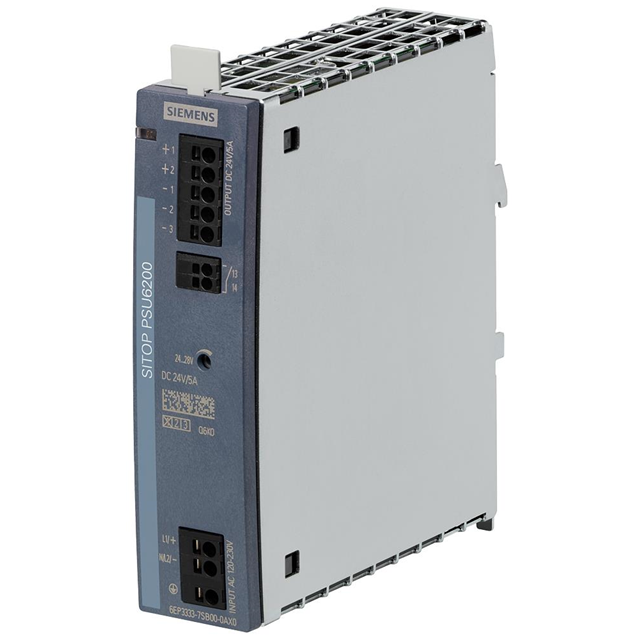

6EP33337SB000AX0

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP33337SB000AX0

AC Voltage - Input [Max]	264 VAC, 240 VAC
AC Voltage - Input [Min]	85 VAC, 100 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CSA, cCSAus, cULus, UL, cUL, CB, CE
Current - Output (Max) [Max]	5 A
DC Voltage - Input (Max) [Max]	275 V
DC Voltage - Input (Min) [Min]	99 V
Efficiency	90.2 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	4.92 in
Size / Dimension [x]	125 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.38 "
Size / Dimension [z]	5.31 "
Size / Dimension [z]	135 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	DC Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Standard Number	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Applications	Current - Output (Max) [Max]	Voltage - Output 1	Efficiency	Approval Agency	Features	DC Voltage - Input (Min) [Min]	Power (Watts)
Siemens 6EP33337SB000AX0	275 V	35 mm	5.31 "	135 mm	1.38 "	4.92 in	125 mm	1	60950-1 UL 508	AC or DC	-25 °C	70 °C	240 VAC 264 VAC	85 VAC 100 VAC	Hazardous Locations Industrial ITE (Commercial)	5 A	24 V	90.2 %	CB cCSAus CE CSA cUL cULus UL	Adjustable Output IP20 Universal Input	99 V
Siemens 6EP33337LB000AX0	275 V	35 mm	5.31 "	135 mm	1.38 "	4.92 in	125 mm	1	60950-1 UL 508	AC or DC	-25 °C	70 °C	240 VAC 264 VAC	85 VAC 100 VAC	Hazardous Locations Industrial ITE (Commercial)	3.7 A	24 V	89.3 %	CB cCSAus CE CSA cUL cULus UL	Adjustable Output IP20 Universal Input	99 V	89 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
