395-118-520-502
ActiveEDAC Inc.

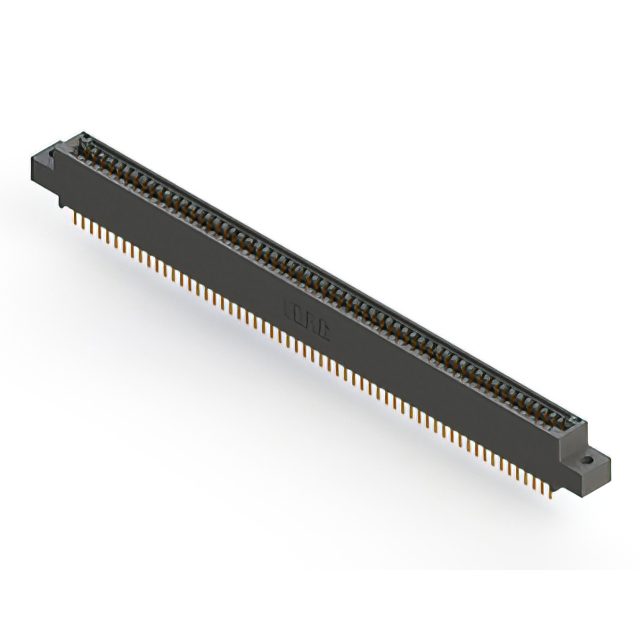

CONN EDGE DUAL FML 118POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-118-520-502
ActiveEDAC Inc.
CONN EDGE DUAL FML 118POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-118-520-502 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 118 |
| Number of Positions/Bay/Row [custom] | 59 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-118 Series
...
| Part | Flange Feature | Flange Feature | Flange Feature | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Pitch [x] | Pitch [x] | Termination | Contact Type | Termination Rows | Contact Material | Read Out | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Gender | Card Type | Color | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 2 | 10 Áin | 0.25 Ám | Gold | Board Edge Straddle Mount | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | Card Extender | -40 °C | 105 ░C | 118 | ||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | 2 | 10 in | 0.25 m | Gold | Through Hole Right Angle | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | Card Guides | 118 | 105 C | -40 C | ||||||
EDAC Inc. | Top Mount Opening Unthreaded | 2 | 10 Áin | 0.25 Ám | Gold | Through Hole | 2.54 mm | 0.1 in | Wire Wrap | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | -40 °C | 105 ░C | 118 | 0.156 in | 3.96 mm | |||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | 2 | 10 Áin | 0.25 Ám | Gold | Through Hole Right Angle | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | -40 °C | 105 ░C | 118 | |||||||
EDAC Inc. | 3.25 mm | 0.128 in | 2 | 10 Áin | 0.25 Ám | Gold | Board Edge Straddle Mount | 2.54 mm | 0.1 in | Solder Eyelet(s) | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | Card Extender | -40 °C | 105 ░C | 118 | |||||
EDAC Inc. | 3.25 mm | 0.128 in | 2 | 10 Áin | 0.25 Ám | Gold | Through Hole | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | -40 °C | 105 ░C | 118 | ||||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | 2 | 10 Áin | 0.25 Ám | Gold | Through Hole | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | Card Guides | -40 °C | 105 ░C | 118 | ||||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Gold | Through Hole | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | Card Guides | -40 °C | 105 ░C | 118 | ||||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | 2 | 10 Áin | 0.25 Ám | Gold | Through Hole | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | Card Guides | -40 °C | 105 ░C | 118 | ||||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | 2 | 10 Áin | 0.25 Ám | Gold | Through Hole | 2.54 mm | 0.1 in | Solder | Cantilever | 2 | Copper Alloy | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 59 | Female | Non Specified - Dual Edge | Black | Card Guides | -40 °C | 105 ░C | 118 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.95 | |
Description
General part information
395-118 Series
118 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
