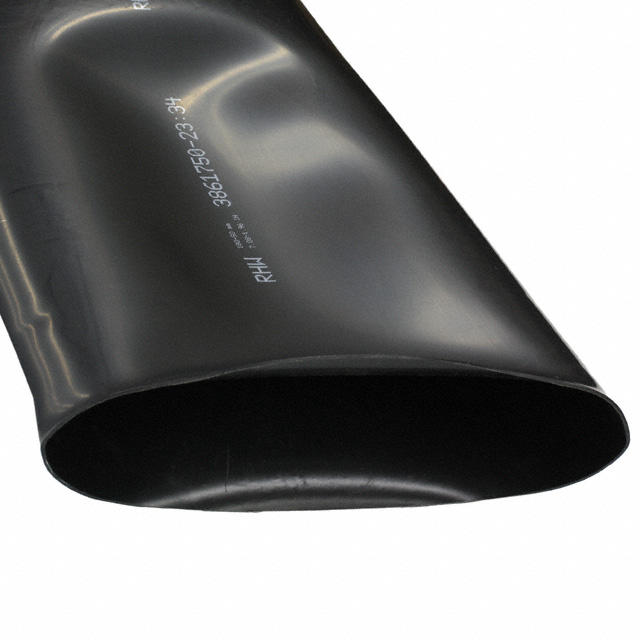

RHW-105/30-1200/ADH-0

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK RHW POLY 105MMX4' BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RHW-105/30-1200/ADH-0

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK RHW POLY 105MMX4' BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RHW-105/30-1200/ADH-0

Color	Black
Features	UV Resistant, Adhesive Lined, Fluid Resistant
Inner Diameter - Recovered [diameter]	30 mm
Inner Diameter - Recovered [diameter]	1.181 in
Inner Diameter - Supplied [diameter]	105 mm
Inner Diameter - Supplied [diameter]	4.134 "
Length	1200 mm
Length	3.94 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.018 in
Recovered Wall Thickness	0.46 mm
Shelf Life	60 Months
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

RHW Series

Part	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Material	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Length [x]	Length [x]	Length [x]	Inner Diameter - Supplied	Inner Diameter - Supplied
TE Connectivity Raychem Cable Protection RHW-48/12-1200/ADH-0	60 Months	1.89 in	48.01 mm	Black	0.472 in	12 mm	4.5 mm	0.177 in	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C	4 to 1
TE Connectivity Raychem Cable Protection RHW-34/8-1200/ADH-0	60 Months	1.339 in	34.01 mm	Black	0.315 in	8 mm	3.99 mm	0.157 in	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C	4 to 1
TE Connectivity Raychem Cable Protection RHW-85/25-1200/ADH-0	60 Months	3.346 in	84.99 mm	Black	0.984 in	24.99 mm	0.41 mm	0.016 "	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C		1	3
TE Connectivity Raychem Cable Protection RHW-33/8-300/ADH-0	60 Months	1.299 in	32.99 mm	Black	0.315 in	8 mm	0.139 "		Tubing Semi Rigid	Polyolefin (PO)			-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C		1	3	3.55 mm	0.984 '	11.81 "	300 mm
TE Connectivity Raychem Cable Protection RHW-90/25-1200/ADH-0	60 Months	3.543 in	89.99 mm	Black	0.984 in	24.99 mm	4.3 mm	0.169 in	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C		1	3.5
TE Connectivity Raychem Cable Protection RHW-34/8-206/ADH-0	60 Months	1.339 in	34.01 mm	Black	0.315 in	8 mm	3.99 mm	0.157 in	Tubing Semi Rigid	Polyolefin (PO)			-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C	4 to 1
TE Connectivity Raychem Cable Protection RHW-105/30-1200/ADH-0	60 Months	4.134 "	105 mm	Black	1.181 in	30 mm	0.46 mm	0.018 in	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C		1	3
TE Connectivity Raychem Cable Protection RHW-70/21-1200/ADH-0	60 Months	2.756 in	70 mm	Black	0.827 "	21.01 mm	0.41 mm	0.016 "	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C		1	3
TE Connectivity Raychem Cable Protection RHW-56/16-1200/ADH-0	60 Months	2.205 in	56.01 mm	Black	0.63 "	16 mm	4.4 mm	0.173 in	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C		1	3.5
TE Connectivity Raychem Cable Protection RHW-110/30-1200/ADH-0	60 Months			Black	1.181 in	30 mm	4.3 mm	0.169 in	Tubing Semi Rigid	Polyolefin (PO)	1200 mm	3.94 ft	-40 °C	110 °C	Adhesive Lined Fluid Resistant UV Resistant	110 °C	35 °C		1	3.5					4.331 in	110.01 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RHW Series

Heat Shrink Tubing, Semi Rigid 4.134" (105.00mm) 3 to 1 Black 3.94' (1.20m)
