3182-2SG-530

Active

Conxall/Switchcraft

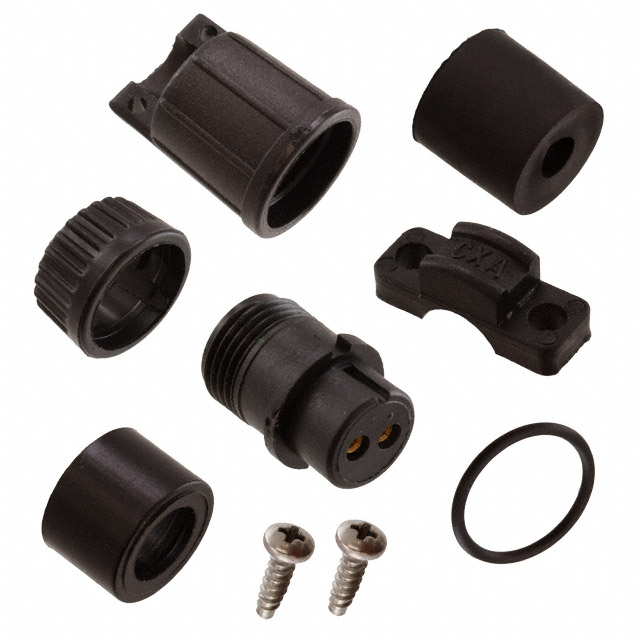

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3182-2SG-530

Active

Conxall/Switchcraft

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.61

Description

General part information

3182-2S Series

2 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3182-2SG-530	3182-2S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	0.32 in	0.23 - 0.32 in
Cable Opening [Max] [diameter]	8.13 mm	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.3 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3182-2S Series

CONN PLUG FMALE 2P GOLD SLDR CUP

Part	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Backshell Material, Plating	Ingress Protection	Connector Type	Contact Material	Features	Shielding	Number of Positions	Mounting Type	Color	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Voltage Rating	Contact Finish - Mating	Orientation	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3182-2SG-330	7.62 mm	0.32 in	8.13 mm	0.3 in	Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed
Conxall/Switchcraft 3182-2SG-328	7.11 mm	0.29 in		0.28 in	Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed	7.37 mm
Conxall/Switchcraft 3182-2SG-321	5.33 mm	0.23 in		0.21 in	Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed	5.84 mm
Conxall/Switchcraft 3182-2SG-521	5.33 mm	0.23 in		0.21 in	Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell, Cable Clamp	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed	5.84 mm
Conxall/Switchcraft 3182-2SG-528	7.11 mm	0.29 in		0.28 in	Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell, Cable Clamp	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed	7.37 mm
Conxall/Switchcraft 3182-2SG-530	7.62 mm	0.32 in	8.13 mm	0.3 in	Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell, Cable Clamp	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed
Conxall/Switchcraft 3182-2SG-315					Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed		0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3182-2SG-515					Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell, Cable Clamp	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed		0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3182-2SG-318					Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed				4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3182-2SG-3DC					Nylon, Polyamide (PA)	Weathertight	Female Sockets, Plug	Brass	Backshell	Unshielded	2	Free Hanging (In-Line)	Black	Bayonet Lock	115 °C	-40 °C	Plastic	600 V	Gold	Keyed
