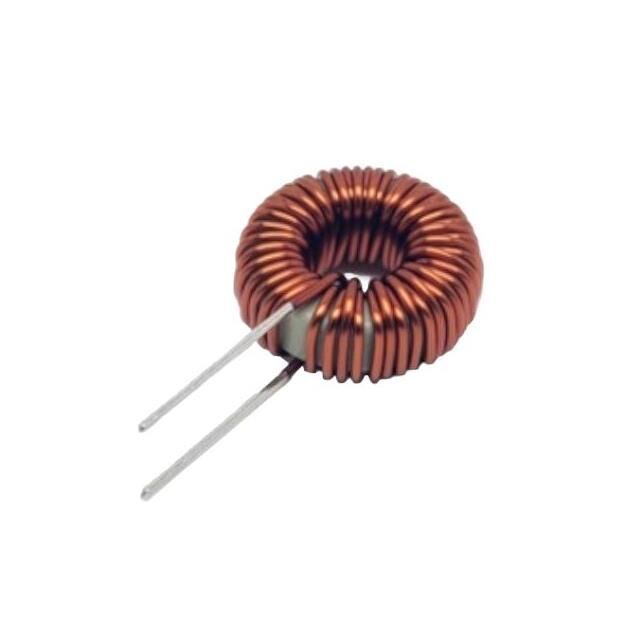

PHBC24N-2R3A0104V

Active

KEMET

TOROIDAL INDUCTOR, PHBC SERIES, 104 µH, 20 A, 0.0104 OHM, ± 20%

Search across all available documentation for this part.

Active

KEMET

TOROIDAL INDUCTOR, PHBC SERIES, 104 µH, 20 A, 0.0104 OHM, ± 20%

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Number of Lines	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Mounting Type	Height (Max)	Size / Dimension	DC Resistance (DCR) (Max)
KEMET PHBC24N-2R3A0104V	125 °C	-40 °C	49.5 mm	1.949 "	No Base Vertical	2 Lead	49.5 mm	1.949 in	104 µH	2	10.4 mOhm	20 A	Through Hole
KEMET PHBC24N-2R1B0039V	125 °C	-40 °C		1.972 "	No Base Vertical	2 Lead		1.972 in	39 µH	2		30 A	Through Hole	50.1 mm	50.1 mm	6.8 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

104 µH 2 Line Common Mode Choke Through Hole 20A DCR 10.4mOhm
